HCPL-181 - Phototransistor Optocoupler

Description

The Broadcom® HCPL-181 contains a light-emitting diode optically coupled to a phototransistor.

It is packaged in a 4-pin mini-flat SMD package with a 2.0-mm profile.

The small dimension of this product allows significant space saving.

Features

  • Current transfer ratio (CTR: minimum 50% at IF = 5 mA, VCE = 5V).
  • High input-output isolation voltage (Viso = 3750 Vrms).
  • High collector-emitter voltage (VCEO = 80V).
  • Response time (tr: typical, 4 μs at VCE = 2V, IC = 2 mA, RL = 100Ω).
  • Mini-flat package (2.0-mm profile) in tape and reel package.
  • UL approved.
  • CSA approved.
  • IEC 60747-5-5 approved.
  • Options available:.
  • IEC 60747-5-5 approvals (060).

📥 Download Datasheet

Datasheet Details

Part number HCPL-181
Manufacturer Broadcom
File Size 613.48 KB
Description Phototransistor Optocoupler
Datasheet download datasheet HCPL-181 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HCPL-181 Phototransistor Optocoupler Hewlett-Packard
HCPL-177K (HCPL-xxxx) Hermetically Sealed / Low IF / Wide VCC / High Gain Optocouplers Hewlett-Packard
HCPL-0201 Very High CMR / Wide VCC Logic Gate Optocouplers Hewlett-Packard
HCPL-0201 Logic Gate Optocouplers Avago
HCPL-0211 Very High CMR / Wide VCC Logic Gate Optocouplers Hewlett-Packard

Other Datasheets by Broadcom

Part Number Description
HCPL-177K High Gain Optocouplers
HCPL-0500 High-Speed Optocouplers
HCPL-0501 High-Speed Optocouplers
HCPL-0600 High Speed TTL Compatible Optocouplers
HCPL-0601 High Speed TTL Compatible Optocouplers

Full PDF Text Transcription

Click to expand full text

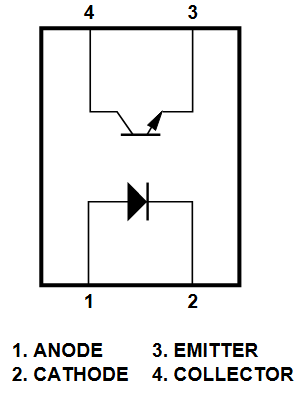

HCPL-181 Phototransistor Optocoupler SMD Mini-Flat Type Data Sheet Description The Broadcom® HCPL-181 contains a light-emitting diode optically coupled to a phototransistor. It is packaged in a 4-pin mini-flat SMD package with a 2.0-mm profile. The small dimension of this product allows significant space saving. The package volume is 30% smaller than that of conventional DIP type. Input-output isolation voltage is 3750 Vrms. Response time, tr, is typically 4 μs and minimum CTR is 50% at input current of 5 mA. Schematic 1 IF ANODE + VF IC 4 COLLECTOR – CATHODE 2 3 EMITTER Functional Diagram PIN NO. AND INTERNAL CONNECTION DIAGRAM 4 3 1. ANODE 2. CATHODE 3. EMITTER 4.
