OP177 - Ultraprecision Operational Amplifier

Description

The OP177

Features

  • PIN.

📥 Download Datasheet

Datasheet Details

Part number OP177
Manufacturer Analog Devices
File Size 438.55 KB
Description Ultraprecision Operational Amplifier
Datasheet download datasheet OP177 Datasheet

📁 Similar Datasheet

  • OP10 - Dual Matched Instrumentation Operational Amplifier (PMI)
  • OP10 - Dual Matched Instrumentation Operational Amplifier (Analog)
  • OP123 - Hermetic Infrared Emitting Diode (TT)
  • OP124 - Hermetic Infrared Emitting Diode (TT)
  • OP1270 - Axial Fiber Optic Isolator (OPTEK Technologies)
  • OP130 - Hermetic Infrared Diode (TT)
  • OP131 - Hermetic Infrared Diode (TT)
  • OP132 - Hermetic Infrared Diode (TT)
  • OP133 - Hermetic Infrared Diode (TT)
  • OP140 - Emitting Diode (TT)
Other Datasheets by Analog Devices
  • OP17 - Precision JFET-Input Operational Amplifiers
  • OP176 - Bipolar/JFET / Audio Operational Amplifier
  • OP179 - Rail-to-Rail High Output Current Operational Amplifiers
  • OP11 - Quad Matched 741-Type Operational Amplifiers
  • OP113 - Low Noise / Low Drift Single-Supply Operational Amplifiers
  • OP1177 - Precision Low Noise / Low Input Bias Current Operational Amplifiers
  • OP14 - DUAL MATCHED HIGH PERFORMANCE OPERATIONAL AMPLIFIERS
  • OP15 - Precision JFET-Input Operational Amplifiers

Full PDF Text Transcription

Click to expand full text

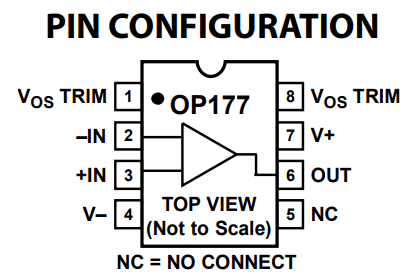

Data Sheet Ultraprecision Operational Amplifier OP177 FEATURES PIN CONFIGURATION 00289-001 Ultralow offset voltage TA = 25°C, 25 μV maximum Outstanding offset voltage drift 0.3 μV/°C maximum Excellent open-loop gain and gain linearity 12 V/μV typical CMRR: 130 dB minimum PSRR: 115 dB minimum Low supply current 2.0 mA maximum Fits industry-standard precision operational amplifier sockets VOS TRIM 1 –IN 2 OP177 8 VOS TRIM 7 V+ +IN 3 6 OUT V– 4 TOP VIEW 5 NC (Not to Scale) NC = NO CONNECT Figure 1. 8-Lead PDIP (P-Suffix), 8-Lead SOIC (S-Suffix) GENERAL DESCRIPTION The OP177 features one of the highest precision performance of any operational amplifier currently available. Offset voltage of the OP177 is only 25 μV maximum at room temperature.
