AD5334 Datasheet Parallel Interface Quad Voltage-Output DACs

Manufacturer: Analog Devices

Datasheet Details

Part number	AD5334
Manufacturer	Analog Devices
File Size	385.09 KB
Description	Parallel Interface Quad Voltage-Output DACs
Download	AD5334 Download (PDF)

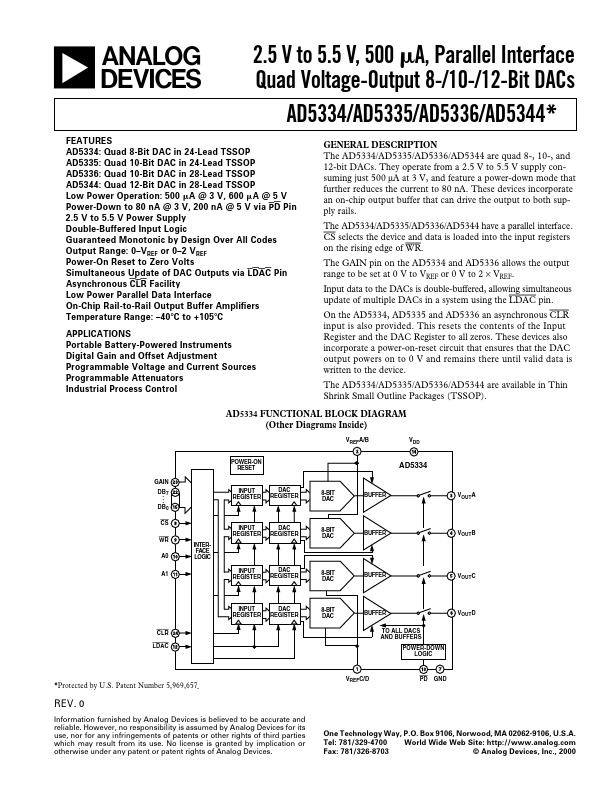

The AD5334/AD5335/AD5336/AD5344 are quad 8-, 10-, and 12-bit DACs.

They operate from a 2.5 V to 5.5 V supply consuming just 500 µA at 3 V, and

a 2.5 V to 5.5 V, 500 ␮A, Parallel Interface Quad Voltage-Output 8-/10-/12-Bit DACs.

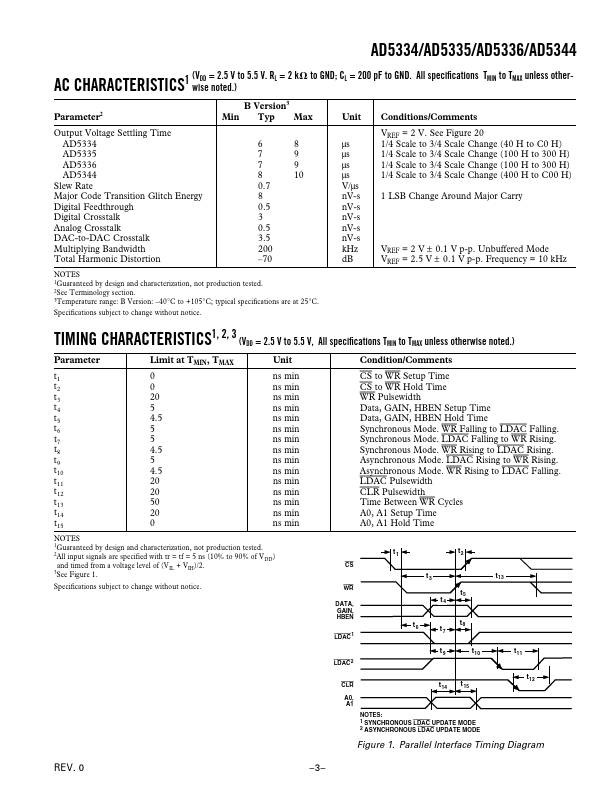

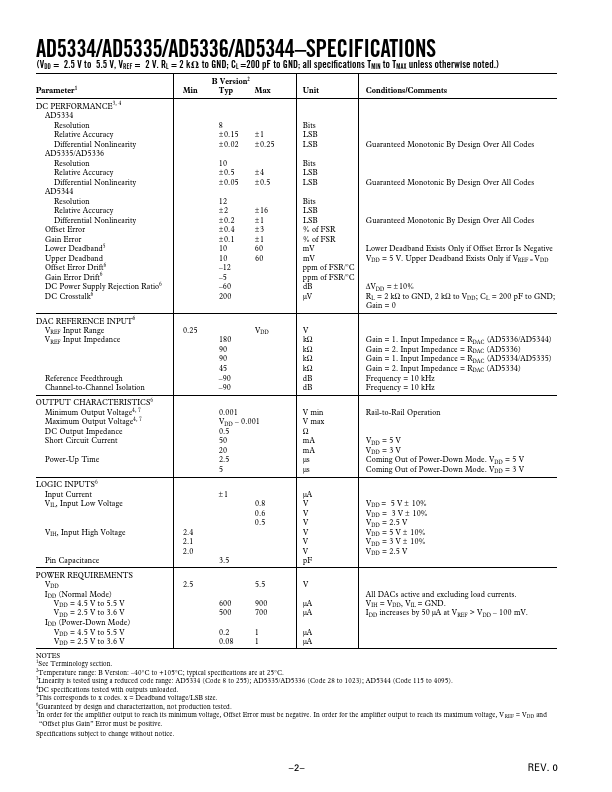

AD5334: Quad 8-Bit DAC in 24-Lead TSSOP AD5335: Quad 10-Bit DAC in 24-Lead TSSOP AD5336: Quad 10-Bit DAC in 28-Lead TSSOP AD5344: Quad 12-Bit DAC in 28-Lead TSSOP Low Power Operation: 500 ␮A @ 3 V, 600 ␮A @ 5 V Power-Down to 80 nA @ 3 V, 200 nA @ 5 V via PD Pin 2.5 V to 5.5 V Power Supply Double-Buffered Input Logic Guaranteed Monotonic by Design Over All Codes Output Range: 0.
VREF or 0.
2 VREF Power-On Reset to Zero Volts Simultaneous Update of DAC Outputs via LDAC Pin Asynchron.
