AOZ53228QI - High-Current High-Performance DrMOS Power Module

Description

The AOZ53228QI is a high efficiency synchronous buck power stage module consisting of two asymmetrical MOSFETs and an integrated driver.

Features

  • high accuracy temperature reporting to controller for thermal monitoring. The MOSFETs are individually optimized for operation in the synchronous buck configuration. The HighSide MOSFET is optimized to achieve low capacitance and gate charge for fast switching with low duty cycle operation. Low-Side MOSFET has ultra-low ON resistance to minimize conduction loss. The compact 5mm x 5mm QFN package is optimally chosen and designed to minimize parasitic inductance for minimal EMI signature. The AOZ5.

📥 Download Datasheet

📁 Similar Datasheet

  • AOZ1015 - EZBuck 1.5A Synchronous Buck Regulator (Alpha and Omega Semiconductors)
  • AOZ1017 - EZBuck 3A Simple Regulator (Alpha and Omega Semiconductors)
  • AOZ1018 - EZBuck 2A Simple Regulator (Alpha and Omega Semiconductors)
  • AOZ1019 - EZBuck 2A Simple Regulator (Alpha and Omega Semiconductors)
  • AOZ1020 - 2A Synchronous Buck Regulator (Alpha and Omega Semiconductors)
  • AOZ1021 - EZBuck 3A Synchronous Buck Regulator (Alpha and Omega Semiconductors)
  • AOZ1024D - EZBuck 4A Synchronous Buck Regulator (Alpha and Omega Semiconductors)
  • AOZ3010PI - 2A Synchronous Buck Regulator (ALPHA & OMEGA)
  • AOZ3011PI - 3A Synchronous Buck Regulator (ALPHA & OMEGA)
  • AOZ3017 - 4A Synchronous Buck Regulator (ALPHA & OMEGA)
Other Datasheets by Alpha & Omega Semiconductors

Full PDF Text Transcription

Click to expand full text

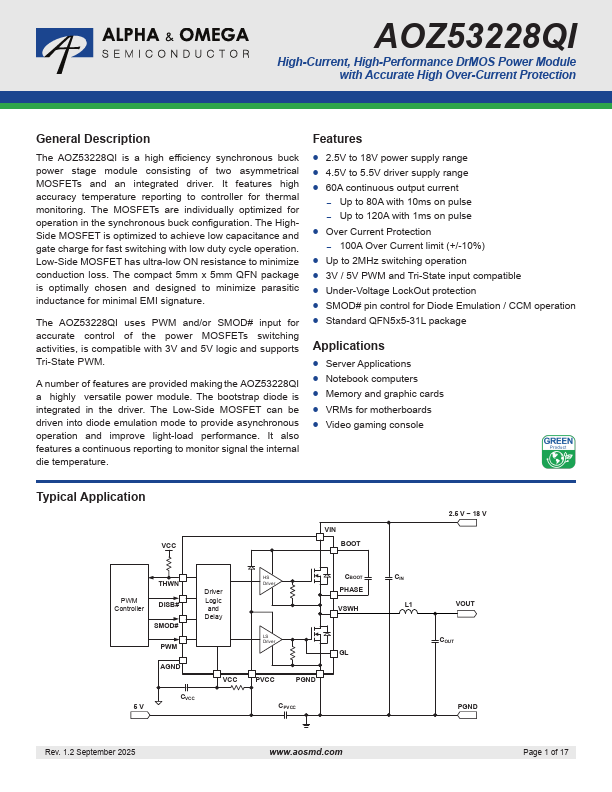

AOZ53228QI High-Current, High-Performance DrMOS Power Module with Accurate High Over-Current Protection General Description The AOZ53228QI is a high efficiency synchronous buck power stage module consisting of two asymmetrical MOSFETs and an integrated driver. It features high accuracy temperature reporting to controller for thermal monitoring. The MOSFETs are individually optimized for operation in the synchronous buck configuration. The HighSide MOSFET is optimized to achieve low capacitance and gate charge for fast switching with low duty cycle operation. Low-Side MOSFET has ultra-low ON resistance to minimize conduction loss. The compact 5mm x 5mm QFN package is optimally chosen and designed to minimize parasitic inductance for minimal EMI signature.
