AOZ2261AQI-18 - 28V/8A Synchronous Regulator

Description

The AOZ2261AQI-18 is a high-efficiency, easy-to-use DC/DC synchronous buck regulator that operates up to 28V.

The device is capable of supplying 8A of continuous output current with an output voltage adjustable down to 0.8V ±1%.

Features

  • multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown. The AOZ2261AQI-18 is available in a 4mm×4mm QFN23L package and is rated over a -40°C to +85°C ambient temperature range. Features.
  • Wide input voltage range.
  • 4V to 28V.
  • 8A continuous output current.
  • Output voltage adjustable down to 0.8V (±1.0%).
  • Low RDS(ON) internal NFETs.
  • 30m high-si.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AOZ1015 EZBuck 1.5A Synchronous Buck Regulator Alpha and Omega Semiconductors
AOZ1017 EZBuck 3A Simple Regulator Alpha and Omega Semiconductors
AOZ1018 EZBuck 2A Simple Regulator Alpha and Omega Semiconductors
AOZ1019 EZBuck 2A Simple Regulator Alpha and Omega Semiconductors
AOZ1020 2A Synchronous Buck Regulator Alpha and Omega Semiconductors

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AOZ2261AQI-15 28V/8A Synchronous Regulator
AOZ2261BQI-15 28V/8A Synchronous Regulator
AOZ2261BQI-20 28V/8A Synchronous Regulator
AOZ2261BQI-28 28V/8A Synchronous Regulator
AOZ2261NQI-11 28V/8A Synchronous Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

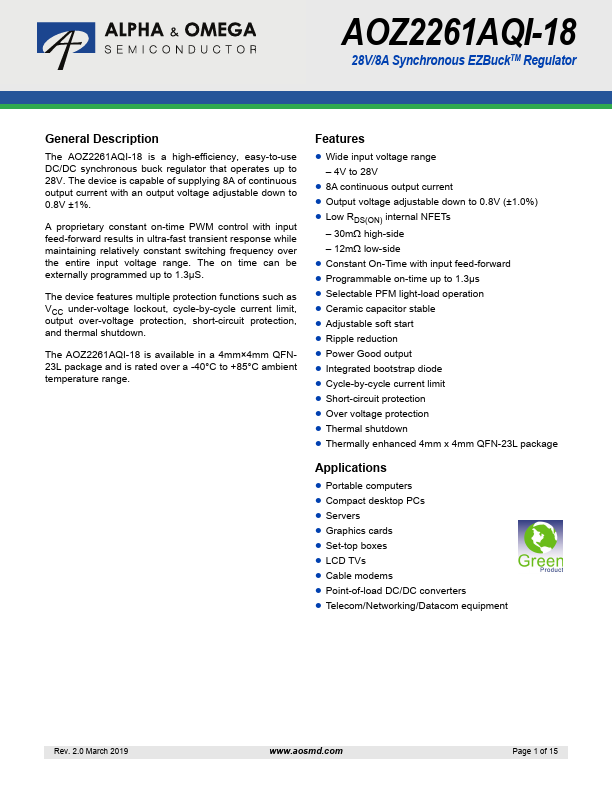

AOZ2261AQI-18 28V/8A Synchronous EZBuckTM Regulator General Description The AOZ2261AQI-18 is a high-efficiency, easy-to-use DC/DC synchronous buck regulator that operates up to 28V. The device is capable of supplying 8A of continuous output current with an output voltage adjustable down to 0.8V ±1%. A proprietary constant on-time PWM control with input feed-forward results in ultra-fast transient response while maintaining relatively constant switching frequency over the entire input voltage range. The on time can be externally programmed up to 1.3µS. The device features multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown.
