AOM025V120X3Q - 1200V Silicon Carbide Power MOSFET

Product Overview

Alpha & Omega Semiconductors

📥 Download Datasheet

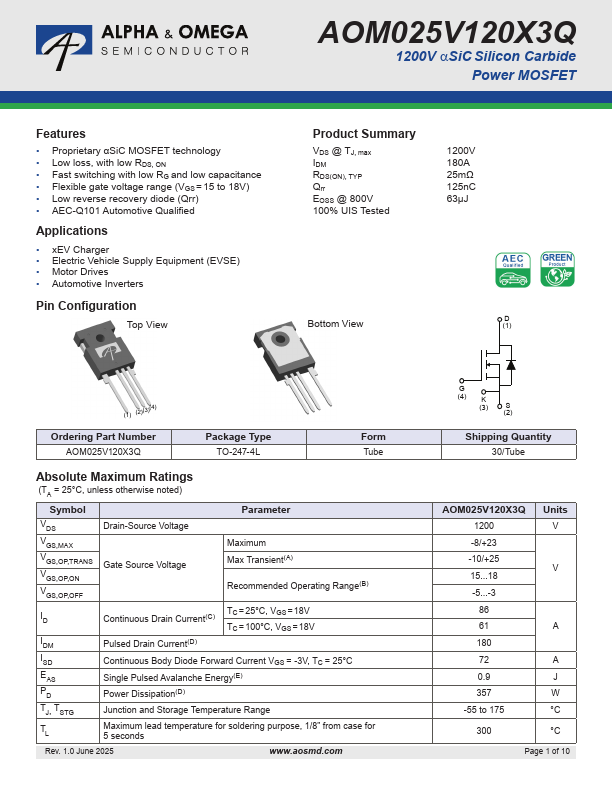

AOM025V120X3Q 1200V Silicon Carbide Power MOSFET by Alpha & Omega Semiconductors - Datasheet Preview — Datasheet preview – AOM025V120X3Q

Datasheet Details

Part number	AOM025V120X3Q
Manufacturer	Alpha & Omega Semiconductors
File Size	2.59 MB
Description	1200V Silicon Carbide Power MOSFET
Datasheet	AOM025V120X3Q Datasheet

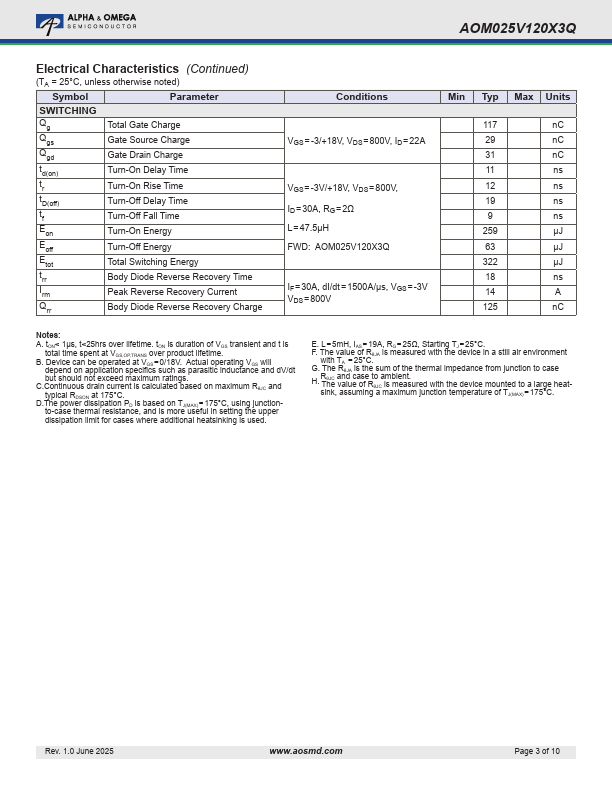

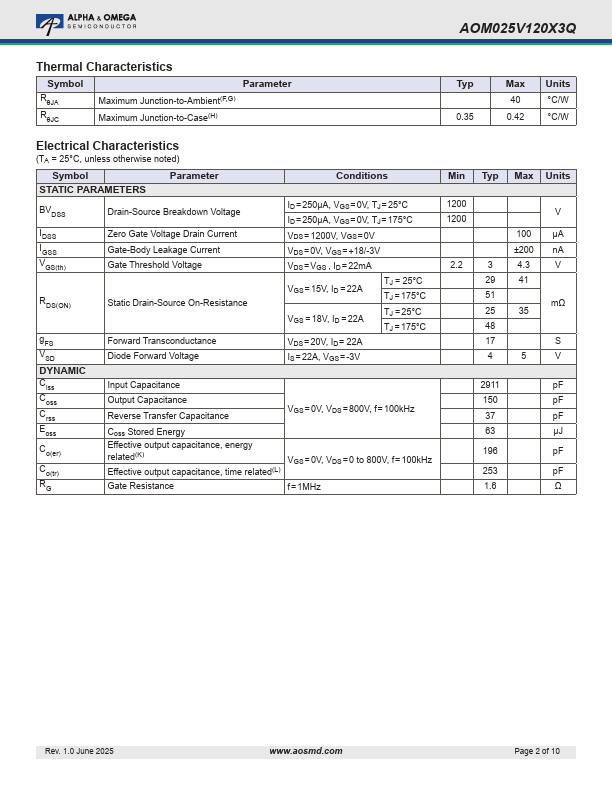

Additional preview pages of the AOM025V120X3Q datasheet.

Product details

Features

Proprietary αSiC MOSFET technology.
Low loss, with low RDS, ON.
Fast switching with low RG and low capacitance.
Flexible gate voltage range (VGS = 15 to 18V).
Low reverse recovery diode (Qrr).
AEC-Q101 Automotive Qualified.
