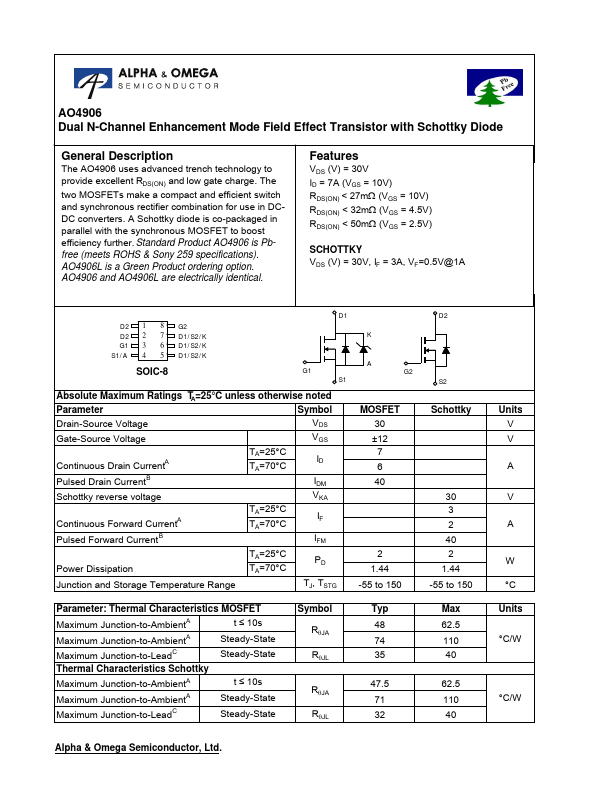

AO4906
Description
The AO4906 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. The two MOSFETs make a pact and efficient switch and synchronous rectifier bination for use in DCDC converters. A Schottky diode is co-packaged in parallel with the synchronous MOSFET to boost efficiency further. Standard Product AO4906 is Pbfree (meets ROHS & Sony 259 specifications). AO4906L is a Green Product ordering option. AO4906 and AO4906L are electrically identical.
Features
VDS (V) = 30V ID = 7A (VGS = 10V) RDS(ON) < 27mΩ (VGS = 10V) RDS(ON) < 32mΩ (VGS = 4.5V) RDS(ON) < 50mΩ (VGS = 2.5V)
SCHOTTKY VDS (V) = 30V, IF = 3A, VF=0.5V@1A
D2 1 8 G2 D2 2 7 D1/S2/K G1 3 6 D1/S2/K S1/A 4 5 D1/S2/K
SOIC-8
D1 K
G1
G2
S1
Absolute Maximum Ratings TA=25°C unless otherwise noted
Parameter
Symbol
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current A Pulsed Drain Current B
TA=25°C TA=70°C
Schottky reverse voltage
Continuous Forward...
