Datasheet Details
| Part number | 2SD1898 |
|---|---|
| Manufacturer | AiT Semiconductor |
| File Size | 297.98 KB |
| Description | NPN GENERAL PURPOSE TRANSISTOR |
| Datasheet |
 2SD1898 Datasheet
|
|
|
| Part number | 2SD1898 |
|---|---|
| Manufacturer | AiT Semiconductor |
| File Size | 297.98 KB |
| Description | NPN GENERAL PURPOSE TRANSISTOR |
| Datasheet |
2SD1898 Datasheet
|
|
|
|

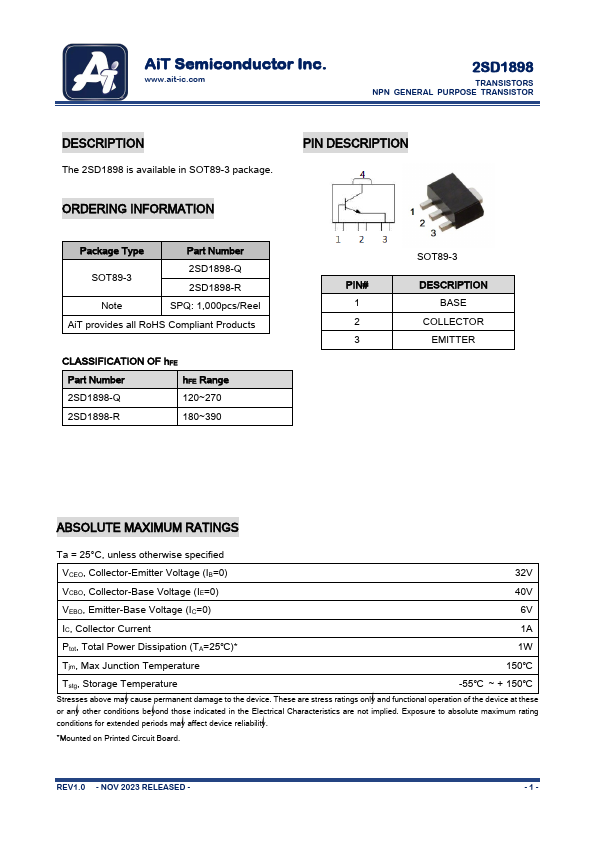

The 2SD1898 is available in SOT89-3 package.
PIN DESCRIPTION ORDERING INFORMATION Package Type Part Number SOT89-3 2SD1898-Q 2SD1898-R Note SPQ: 1,000pcs/Reel AiT provides all RoHS Compliant Products CLASSIFICATION OF hFE Part Number hFE Range 2SD1898-Q 120~270 2SD1898-R 180~390 PIN# 1 2 3 SOT89-3 DESCRIPTION BASE COLLECTOR EMITTER ABSOLUTE MAXIMUM RATINGS Ta = 25°C, unless otherwise specified VCEO, Collector-Emitter Voltage (IB=0) 32V VCBO, Collector-Base Voltage (IE=0) 40V VEBO, Emitter-Base Voltage (IC=0) 6V IC, Collector Current 1A Ptot, Total Power Dissipation (TA=25℃)* 1W Tjm, Max Junction Temperature 150℃ Tstg, Storage Temperature -55℃ ~ + 150℃ Stresses above may cause permanent damage to the device.
These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated in the Electrical Characteristics are not implied.
AiT Semiconductor Inc.
www.ait-ic.com 2SD1898 TRANSISTORS NPN GENERAL PURPOSE.
