2SB624 - SILICON PNP EPITAXIAL PLANAR TRANSISTOR

General Description

The 2SB624-V1, 2SB624-V2, 2SB624-V3, 2SB624-V4 and 2SB624-V5 are available in the SOT-23 package.

Micro packa

📥 Download Datasheet

Datasheet Details

Part number 2SB624
Manufacturer AiT Semiconductor
File Size 654.35 KB
Description SILICON PNP EPITAXIAL PLANAR TRANSISTOR
Datasheet download datasheet 2SB624 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB624 PNP Transistor NEC
2SB624 Silicon Transistor GME
2SB624 PNP Transistor INCHANGE
2SB624 PNP Transistors Kexin
2SB624 PNP Transistor SeCoS

Other Datasheets by AiT Semiconductor

Part Number Description
2SB1124 PNP EPITAXIAL PLANAR SILICON TRANSISTOR
2SB1188 PNP-SILICON GENERAL USE TRANSISTOR
2SB1189 PNP MEDIUM POWER TRANSISTOR
2SB798 PNP SILICON GENERAL PURPOSE TRANSISTOR
2SB799 PNP SILICON GENERAL PURPOSE TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

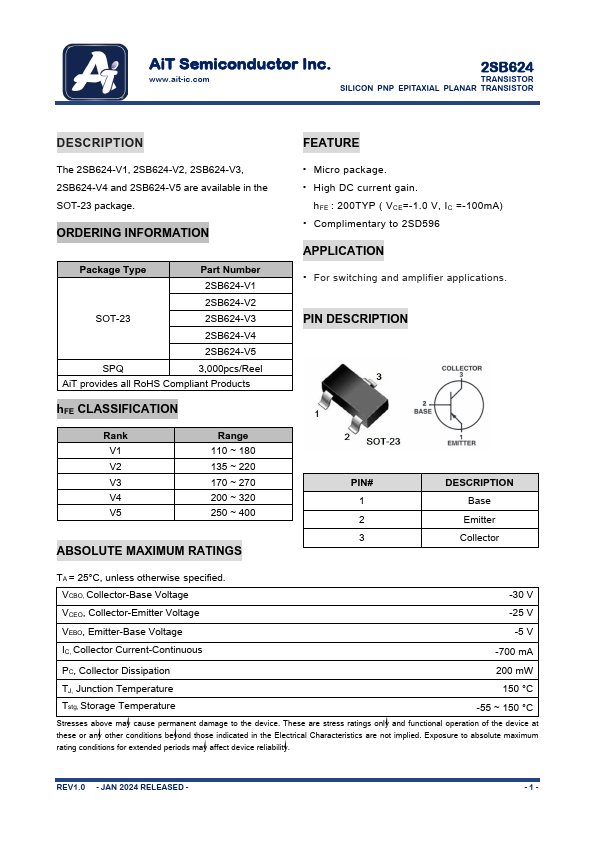

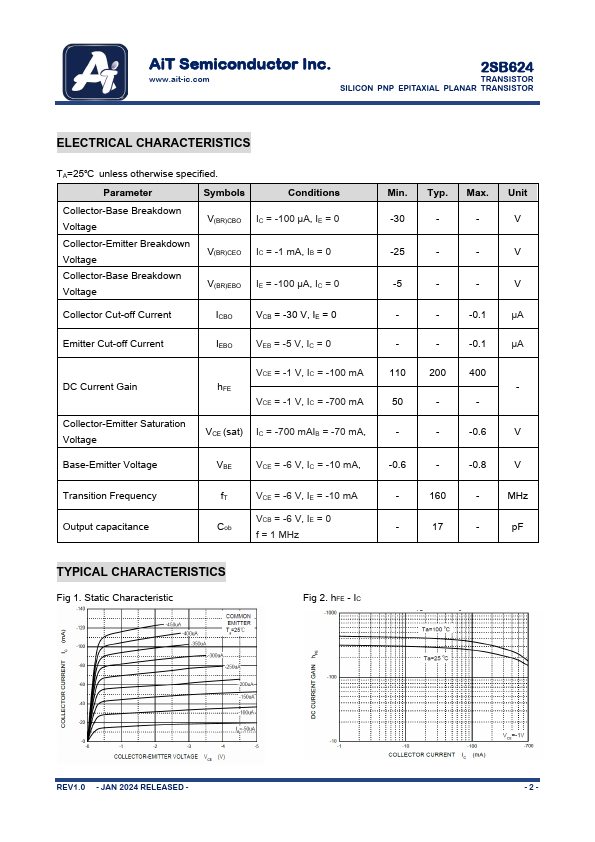

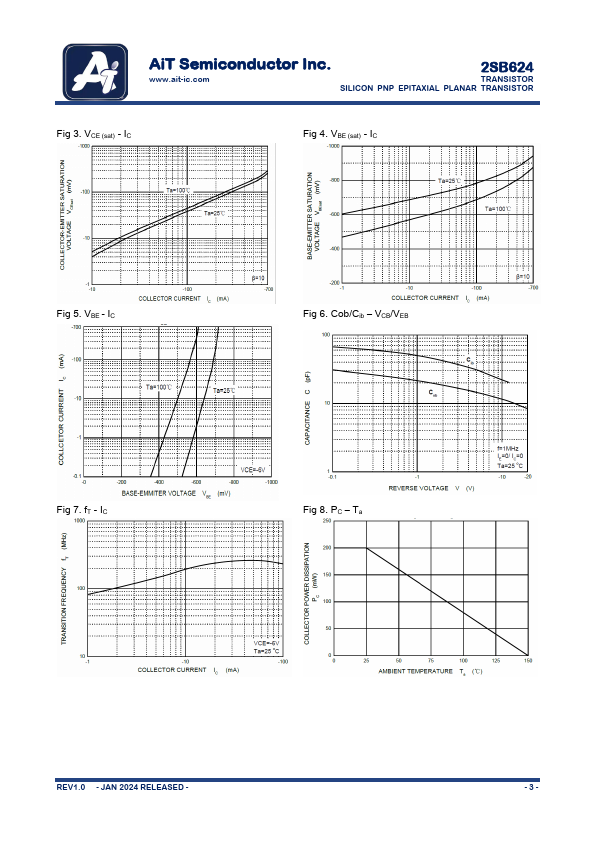

AiT Semiconductor Inc. 2SB624 www.ait-ic.com TRANSISTOR SILICON PNP EPITAXIAL PLANAR TRANSISTOR DESCRIPTION The 2SB624-V1, 2SB624-V2, 2SB624-V3, 2SB624-V4 and 2SB624-V5 are available in the SOT-23 package. ORDERING INFORMATION Package Type Part Number 2SB624-V1 2SB624-V2 SOT-23 2SB624-V3 2SB624-V4 2SB624-V5 SPQ 3,000pcs/Reel AiT provides all RoHS Compliant Products FEATURE • Micro package. • High DC current gain. hFE : 200TYP ( VCE=-1.0 V, IC =-100mA) • Complimentary to 2SD596 APPLICATION • For switching and amplifier applications. PIN DESCRIPTION hFE CLASSIFICATION Rank V1 V2 V3 V4 V5 Range 110 ~ 180 135 ~ 220 170 ~ 270 200 ~ 320 250 ~ 400 ABSOLUTE MAXIMUM RATINGS PIN# 1 2 3 DESCRIPTION Base Emitter Collector TA = 25°C, unless otherwise specified.
