2SA1362 - SILICON PNP EPITAXIAL TYPE TRANSISTOR

General Description

The 2SA1362-Y & 2SA1362-G are available in SOT-23 package.

Suitable for the dr

📥 Download Datasheet

Datasheet Details

Part number 2SA1362
Manufacturer AiT Semiconductor
File Size 399.72 KB
Description SILICON PNP EPITAXIAL TYPE TRANSISTOR
Datasheet download datasheet 2SA1362 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1362 Silicon PNP Transistor Toshiba Semiconductor
2SA1362 PNP Transistors Kexin
2SA1362 Transistors TY Semiconductor
2SA1360 TRANSISTOR Toshiba Semiconductor
2SA1360 SILICON POWER TRANSISTOR SavantIC

Other Datasheets by AiT Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

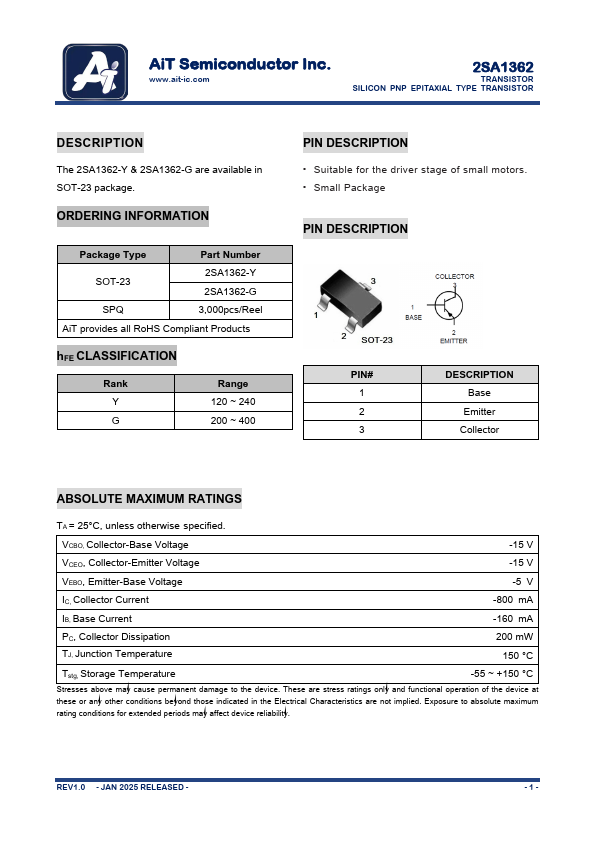

AiT Semiconductor Inc. www.ait-ic.com 2SA1362 TRANSISTOR SILICON PNP EPITAXIAL TYPE TRANSISTOR DESCRIPTION The 2SA1362-Y & 2SA1362-G are available in SOT-23 package. ORDERING INFORMATION Package Type Part Number SOT-23 2SA1362-Y 2SA1362-G SPQ 3,000pcs/Reel AiT provides all RoHS Compliant Products hFE CLASSIFICATION Rank Y G Range 120 ~ 240 200 ~ 400 PIN DESCRIPTION • Suitable for the driver stage of small motors. • Small Package PIN DESCRIPTION PIN# 1 2 3 DESCRIPTION Base Emitter Collector ABSOLUTE MAXIMUM RATINGS TA = 25°C, unless otherwise specified.
