P430QVN01.0
Description
P430QVN01.0 Product Specification Rev. 3.2

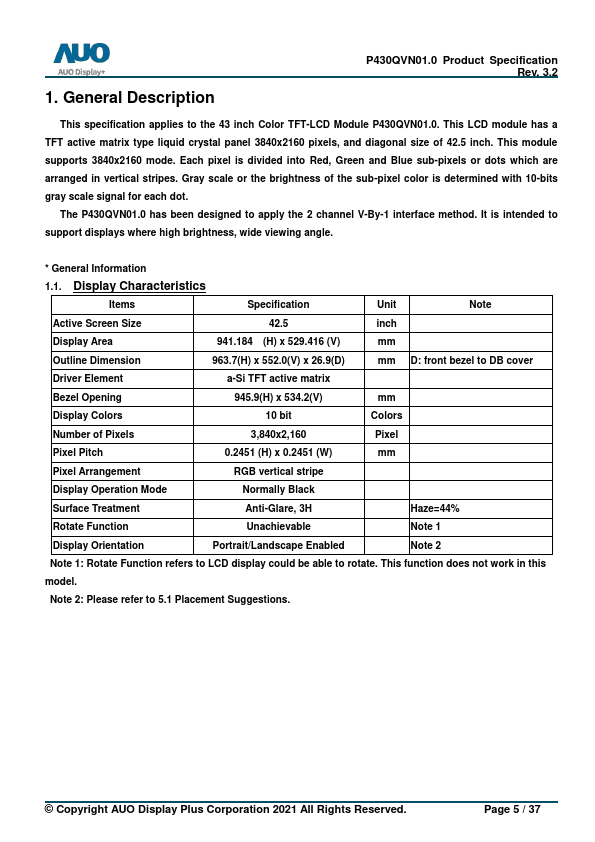

This specification applies to the 43 inch Color TFT-LCD Module P430QVN01.0. This LCD module has a TFT active matrix type liquid crystal panel 3840x2160 pixels, and diagonal size of 42.5 inch. This module supports 3840x2160 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with 10-bits gray scale signal for each dot.
The P430QVN01.0 has been designed to apply the 2 channel V-By-1 interface method. It is intended to support displays where high brightness, wide viewing angle.
- General Information
1.1. Display Characteristics
Items
Specification
Unit
Note
Active Screen Size
42.5 inch
Display Area
941.184 (H) x 529.416 (V) mm
Outline Dimension
963.7(H) x 552.0(V) x 26.9(D) mm D: front bezel to DB cover
Driver Element a-Si TFT active matrix
Bezel Opening
945.9(H) x 534.2(V) mm
Display...
