M240UW01-V3 - LCD

Download the M240UW01-V3 datasheet PDF. This datasheet also covers the M240UW01_V3 variant, as both devices belong to the same lcd family and are provided as variant models within a single manufacturer datasheet.

General Description

6 2.1 Display Characteristics 6 2.2 Optical Characteristics 8 3.0 Functional Block Diagram 16 4.0 Absolute Maximum Ratings 16 4.1 TFT LCD Module 16 4.2 Backlight Unit 16 4.3 Absolute Ratings of Environment 16 5.0 Electrical characteristics 16 5.1 TFT LCD Module 16 5.1.1 Power Specification

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (M240UW01_V3_AUO.pdf) that lists specifications for multiple related part numbers.

Other Datasheets by AU Optronics

Part Number Description
M240UW01-V0 LCD
M240UW01-V1 LCD
M240UW01-V2 LCD
M240UW04-V1 TFT LOD
M240UAN01.0 Color TFT-LCD
M240UAN02.0 Color TFT-LCD
M240UP01-V0 WUXGA Color TFT-LCD
M240HTD01.0 Color TFT-LCD
M240HTN01.0 Color TFT-LCD
M240HTN01.1 Color TFT-LCD

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

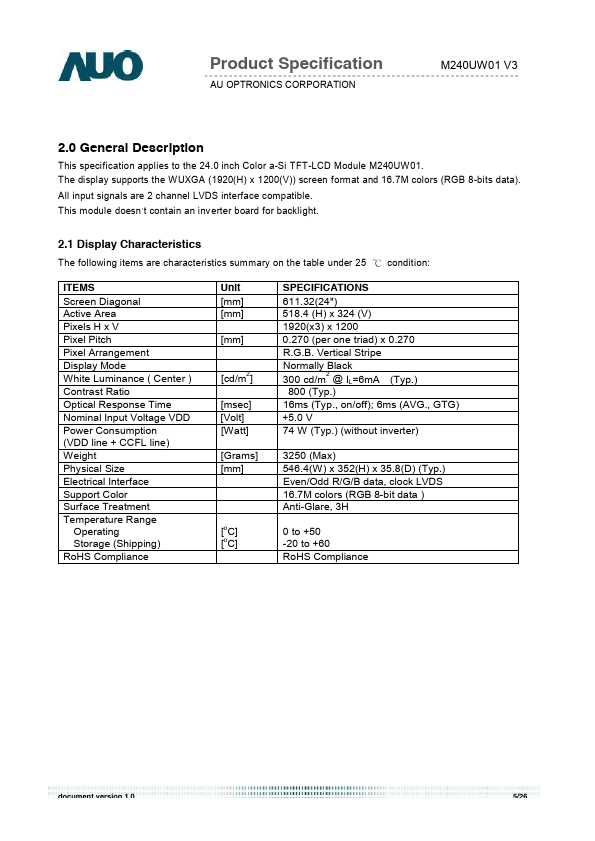

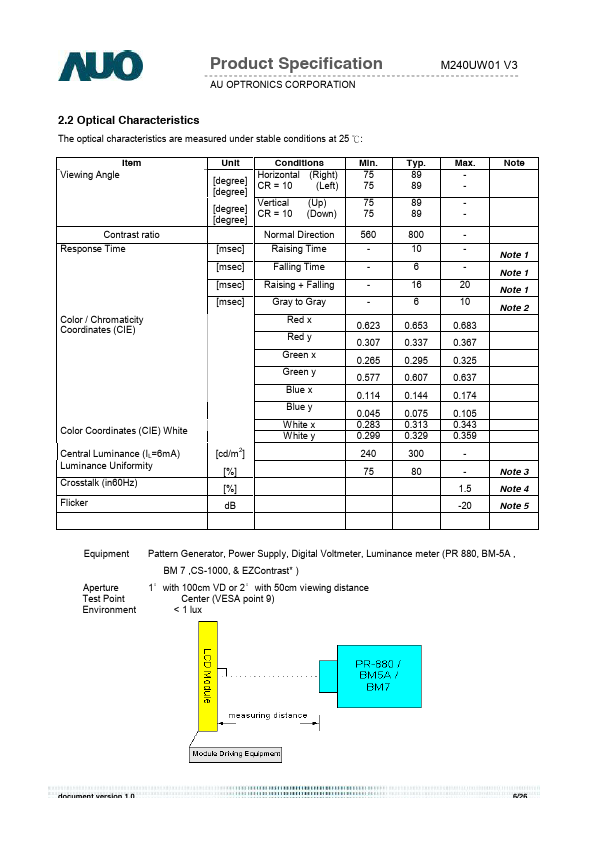

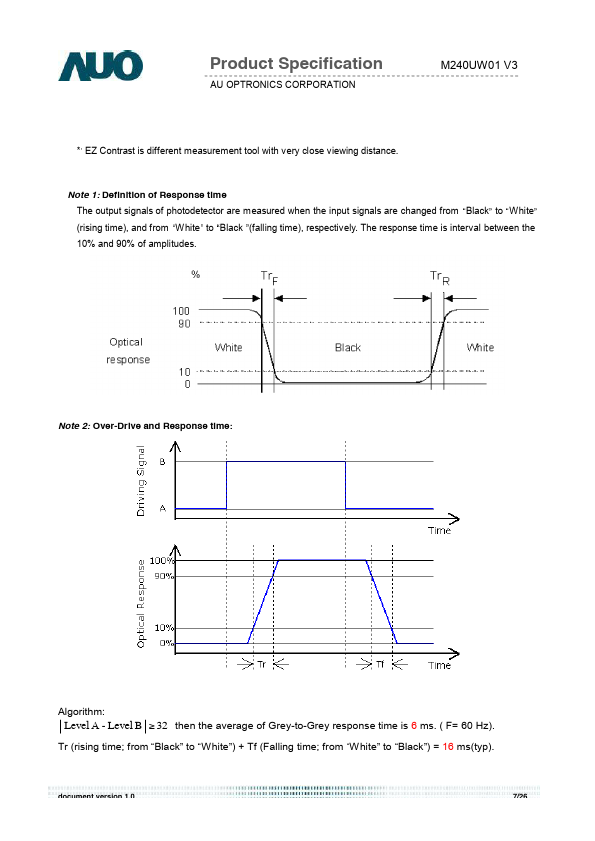

www.DataSheet4U.net Product Specification AU OPTRONICS CORPORATION M240UW01 V3 Contents 1.0 Handling Precautions............................................................. 7 2.0 General Description ............................................................... 6 2.1 Display Characteristics .............................................................................................................. 6 2.2 Optical Characteristics ............................................................................................................... 8 3.0 Functional Block Diagram .................................................... 16 4.0 Absolute Maximum Ratings.................................................. 16 4.1 TFT LCD Module .............................................................
