G185XW01-V2
Description
This specification applies to the 18.5 inch-wide Color a-Si TFT-LCD Module G185XW01 V2.The display supports the WXGA [1366(H) x 768(V)] screen format and 16.7M colors (RGB 6-bits + Hi-FRC data). All input signals are LVDS interface aptible.

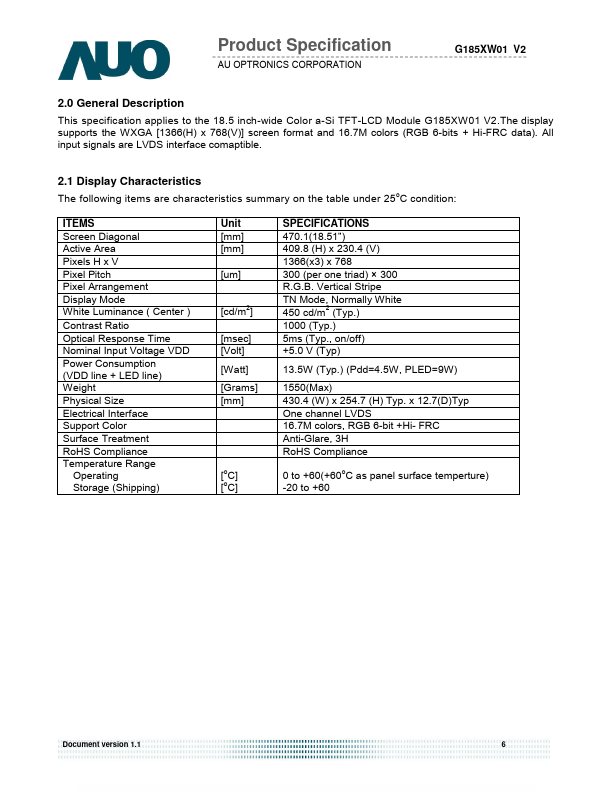

2.1 Display Characteristics The following items are characteristics summary on the table under 25o C condition:
ITEMS Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Arrangement Display Mode White Luminance ( Center )
Contrast Ratio Optical Response Time Nominal Input Voltage VDD Power Consumption (VDD line + LED line) Weight Physical Size Electrical Interface Support Color Surface Treatment Ro HS pliance Temperature Range
Operating Storage (Shipping)
Unit [mm] [mm] [um]
[cd/m2] [msec] [Volt] [Watt] [Grams] [mm]
[o C] [o C]
SPECIFICATIONS 470.1(18.51”) 409.8 (H) x 230.4 (V) 1366(x3) x 768 300 (per one triad) × 300 R.G.B. Vertical Stripe TN Mode, Normally White 450 cd/m2 (Typ.) 1000 (Typ.) 5ms (Typ., on/off) +5.0 V (Typ)
13.5W...
