G121XTN01.0
Description

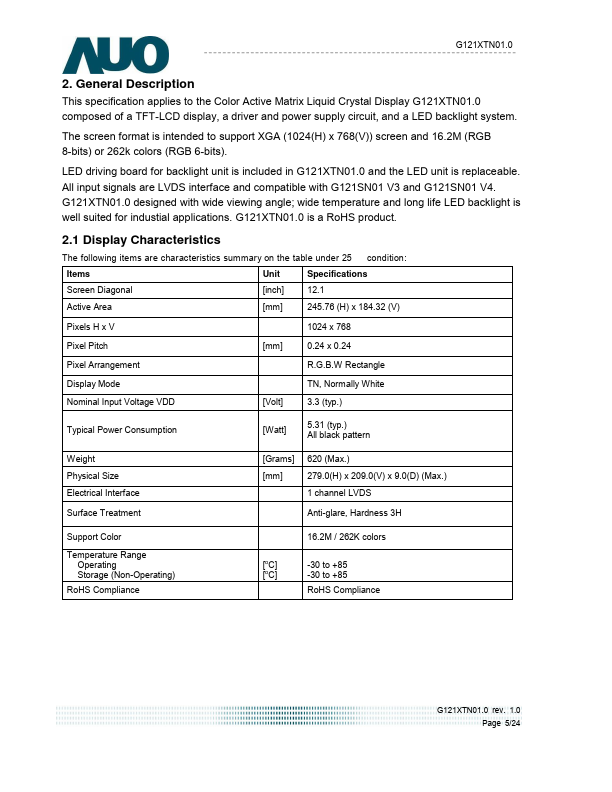

This specification applies to the Color Active Matrix Liquid Crystal Display G121XTN01.0 posed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system.
The screen format is intended to support XGA (1024(H) x 768(V)) screen and 16.2M (RGB 8-bits) or 262k colors (RGB 6-bits).
LED driving board for backlight unit is included in G121XTN01.0 and the LED unit is replaceable. All input signals are LVDS interface and patible with G121SN01 V3 and G121SN01 V4. G121XTN01.0 designed with wide viewing angle; wide temperature and long life LED backlight is well suited for industial applications. G121XTN01.0 is a Ro HS product.

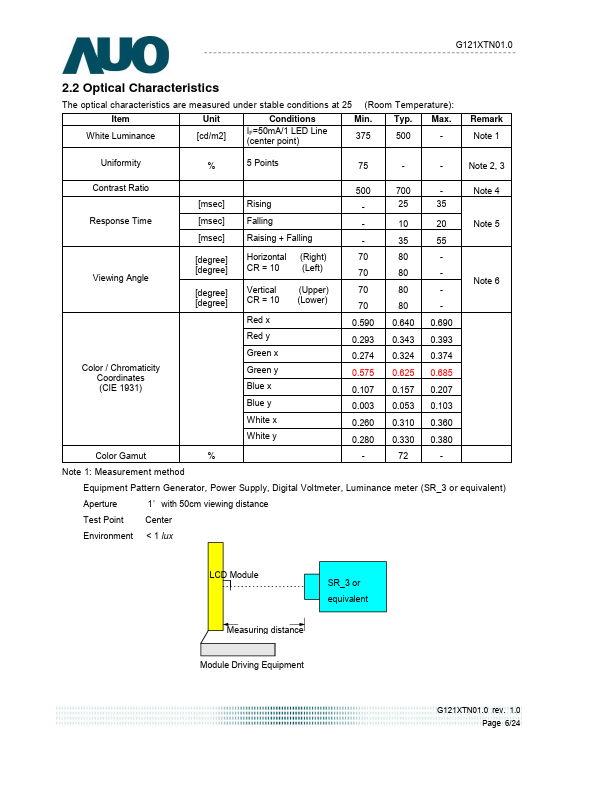

2.1 Display Characteristics
The following items are characteristics summary on the table under 25 Ċ condition:
Items
Unit
Specifications
Screen Diagonal
[inch]
Active Area
[mm]
245.76 (H) x 184.32 (V)
Pixels H x V
1024 x 768
Pixel Pitch
[mm]
0.24 x 0.24
Pixel Arrangement
R.G.B.W Rectangle
Display Mode Nominal...
