G121XN01-V001

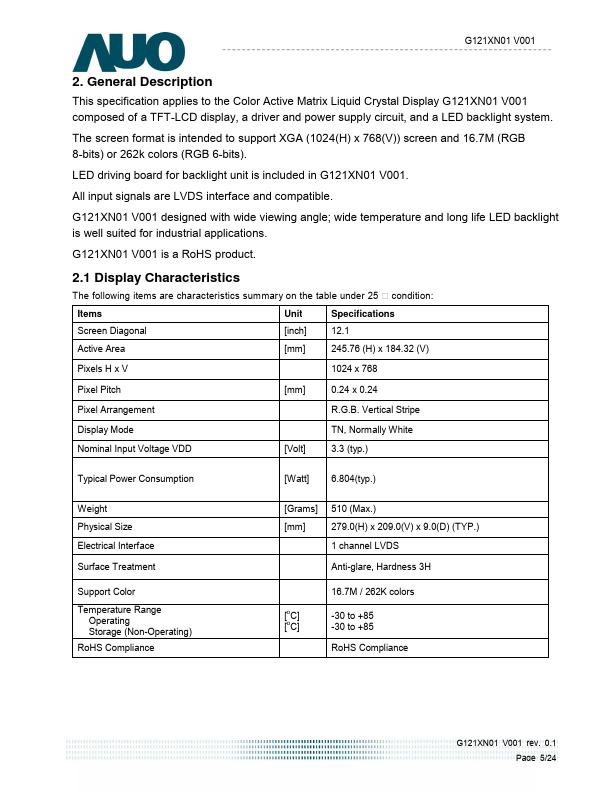

Description
This specification applies to the Color Active Matrix Liquid Crystal Display G121XN01 V001 posed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system.
The screen format is intended to support XGA (1024(H) x 768(V)) screen and 16.7M (RGB 8-bits) or 262k colors (RGB 6-bits).
LED driving board for backlight unit is included in G121XN01 V001.
All input signals are LVDS interface and patible.
G121XN01 V001 designed with wide viewing angle; wide temperature and long life LED backlight is well suited for industrial applications.
G121XN01 V001 is a Ro HS product.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 condition:
Items
Unit
Specifications
Screen Diagonal
[inch]
Active Area
[mm]
245.76 (H) x 184.32 (V)
Pixels H x V
1024 x 768
Pixel Pitch
[mm]
0.24 x 0.24
Pixel Arrangement
R.G.B. Vertical Stripe
Display Mode Nominal Input Voltage VDD
[Volt]
TN, Normally White 3.3...
