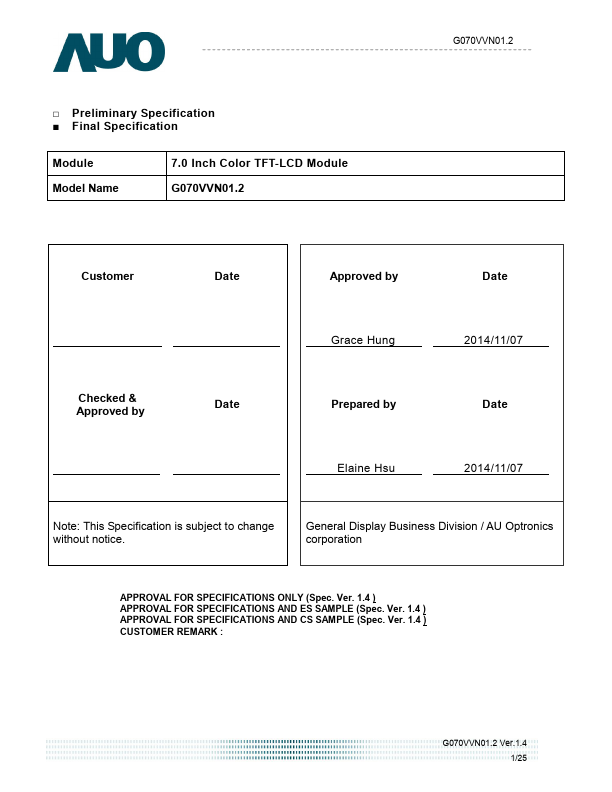

G070VVN01.2 Datasheet Text
- Preliminary Specification
- Final Specification
Module Model Name
7.0 Inch Color TFT-LCD Module G070VVN01.2
Customer
Date
Approved by
Date
Grace Hung
2014/11/07
Checked & Approved by
Date
Prepared by
Date
Elaine Hsu
2014/11/07
Note: This Specification is subject to change without notice.
General Display Business Division / AU Optronics corporation
½ APPROVAL FOR SPECIFICATIONS ONLY (Spec. Ver. 1.4 ) ½ APPROVAL FOR SPECIFICATIONS AND ES SAMPLE (Spec. Ver. 1.4 ) ½ APPROVAL FOR SPECIFICATIONS AND CS SAMPLE (Spec. Ver. 1.4 ) ½ CUSTOMER REMARK :
G070VVN01.2 Ver.1.4 1/25
2. General Description
This specification applies to the 7.0 inch color TFT LCD with AMVA (Advanced MVA) technology module G070VVN01.2. It posed of a TFT-LCD panel, driver ICs, PCB with power supply circuit and backlight unit.
The screen format is intended to support the WVGA (800(H) x 480(V)) screen and 16.2M (8-bits) or 262k colors (6-bits) by digital RGB interface.
2.1 Features
- 7.0 inch (15:9) display
- WVGA (800 × 480) resolution
- Digital parallel RGB 6/8bit interface
- Scan direction reversible
- High brightness
- High Contrast ratio...
