G043FTT01.0 Datasheet Text

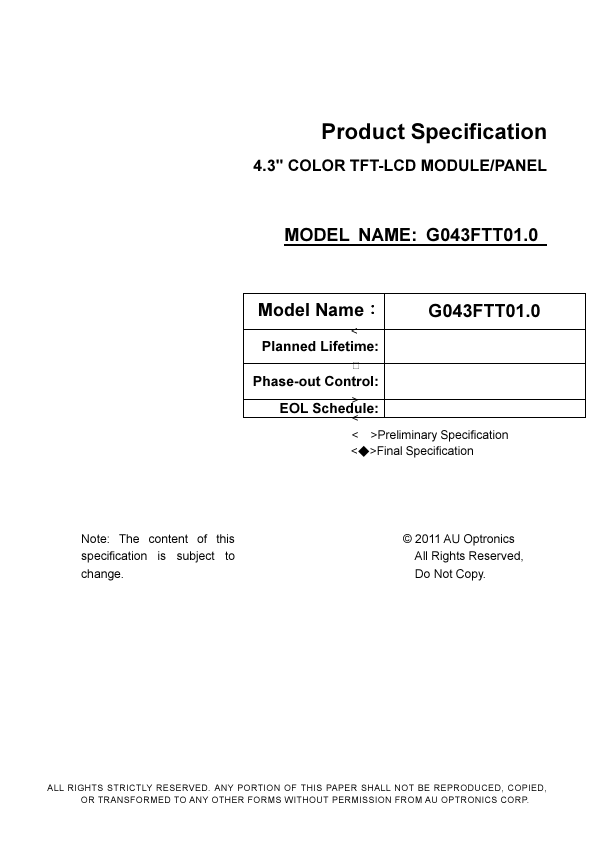

Product Specification
4.3" COLOR TFT-LCD MODULE/PANEL
MODEL NAME: G043FTT01.0
Model Name：
<
Planned Lifetime:
Phase-out Control:
EOL Sched>ule:
< < >Preliminary Specification <- >Final Specification
Note: The content of this specification is subject to change.
© 2011 AU Optronics All Rights Reserved, Do Not Copy.
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PAPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM AU OPTRONICS CORP.
Version:
1.0
Page:
3/19

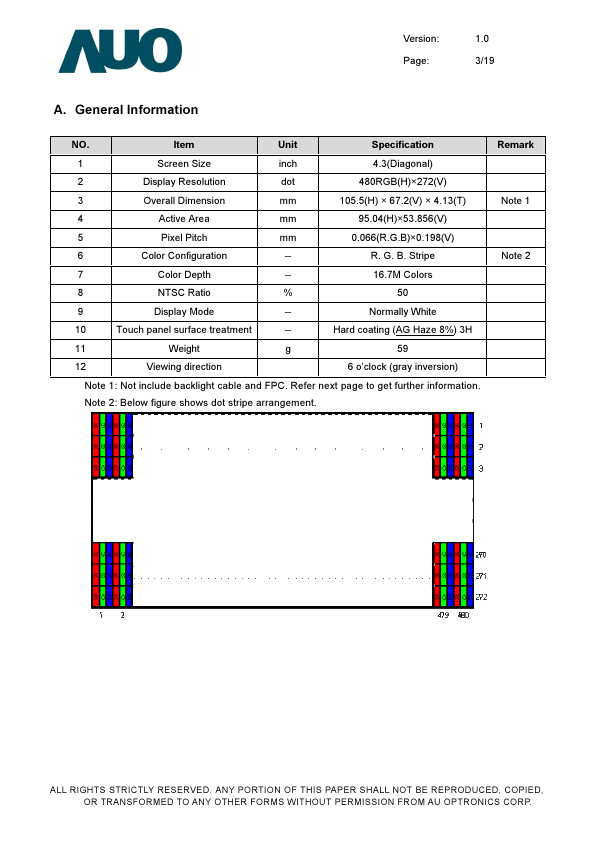

A. General Information
NO.
Item
Unit
Specification
1
Screen Size inch
4.3(Diagonal)
2
Display Resolution dot
480RGB(H)×272(V)
3
Overall Dimension mm
105.5(H) × 67.2(V) × 4.13(T)...
