B116XW03-V2 - TFT LCD Module

Download the B116XW03-V2 datasheet PDF. This datasheet also covers the B116XW03V2 variant, as both devices belong to the same tft lcd module family and are provided as variant models within a single manufacturer datasheet.

Description

3.

Functional Block Diagram 11 4.

5.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (B116XW03V2_AUO.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number B116XW03-V2
Manufacturer AUO
File Size 761.46 KB
Description TFT LCD Module
Datasheet download datasheet B116XW03-V2 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
B1160CALRP SIDACtor Protection Thyristors Littelfuse
B1160CCLRP SIDACtor Protection Thyristors Littelfuse
B1161UA SLIC Protection Thyristors Littelfuse
B1161UC SIDACtor Protection Thyristors Littelfuse
B1161UC4 SIDACtor Protection Thyristors Littelfuse

Other Datasheets by AUO

Part Number Description
B116XW03-V0 TFT LCD
B116XW03-V1 HD 16:9 Color TFT-LCD
B116XW01-V0 TFT LCD
B116XW02-V0 TFT LCD
B116XW02-V1 TFT LCD

Full PDF Text Transcription

Click to expand full text

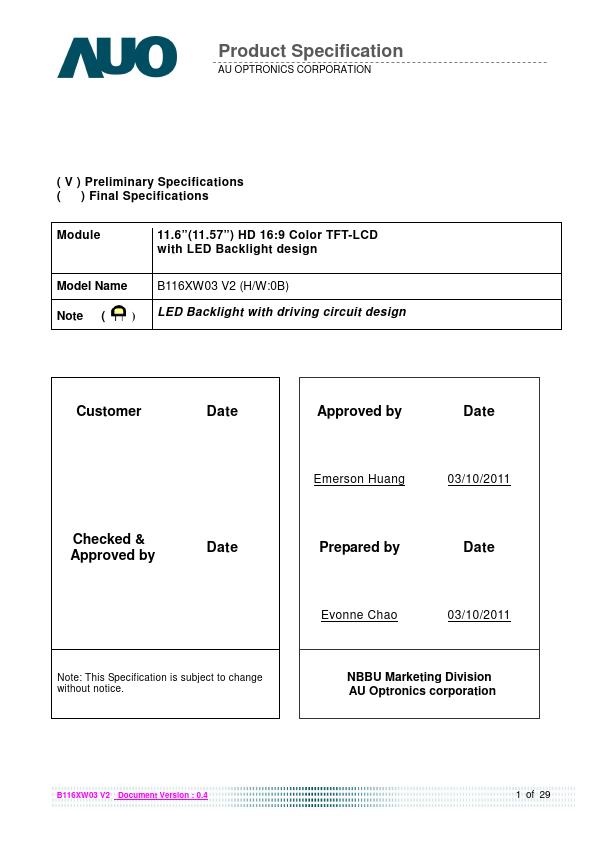

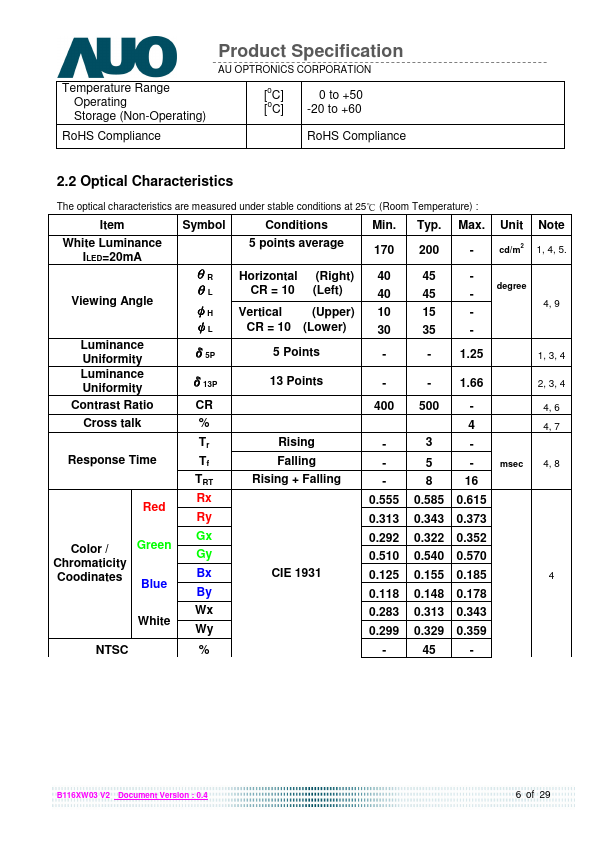

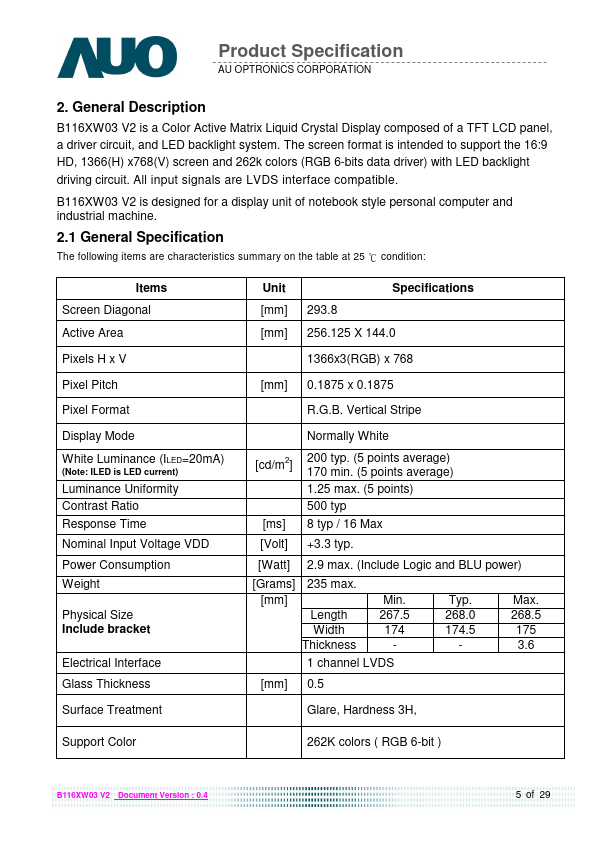

Product Specification AU OPTRONICS CORPORATION ( V ) Preliminary Specifications ( ) Final Specifications Module 11.6”(11.57”) HD 16:9 Color TFT-LCD with LED Backlight design B116XW03 V2 (H/W:0B) ) LED Backlight with driving circuit design Model Name Note ( Customer Date Approved by Date Emerson Huang 03/10/2011 Checked & Approved by Date Prepared by Date Evonne Chao 03/10/2011 Note: This Specification is subject to change without notice. NBBU Marketing Division AU Optronics corporation B116XW03 V2 Document Version : 0.4 1 of 29 Free Datasheet http://www.datasheet4u.com/ Product Specification AU OPTRONICS CORPORATION Contents 1. Handling Precautions .............................................................. 4 2. General Description .................................
