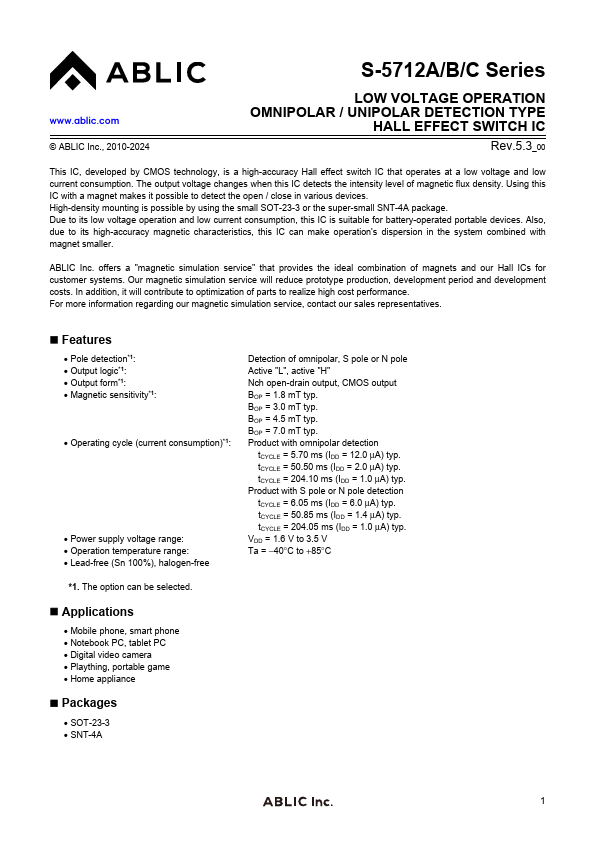

S-5712B
Features
- Pole detection- 1:
- Output logic- 1:
- Output form- 1:
- Magnetic sensitivity- 1:
- Operating cycle (current consumption)- 1:
- Power supply voltage range:
- Operation temperature range:
- Lead-free (Sn 100%), halogen-free
Detection of omnipolar, S pole or N pole Active "L", active "H" Nch open-drain output, CMOS output BOP = 1.8 m T typ. BOP = 3.0 m T typ. BOP = 4.5 m T typ. BOP = 7.0 m T typ. Product with omnipolar detection t CYCLE = 5.70 ms (IDD = 12.0 μA) typ. t CYCLE = 50.50 ms (IDD = 2.0 μA) typ. t CYCLE = 204.10 ms (IDD = 1.0 μA) typ. Product with S pole or N pole detection t CYCLE = 6.05 ms (IDD = 6.0 μA) typ. t CYCLE = 50.85 ms (IDD = 1.4 μA) typ. t CYCLE = 204.05 ms (IDD = 1.0 μA) typ. VDD = 1.6 V to 3.5 V Ta =
- 40°C to +85°C
- 1. The option can be selected.
- Applications
- Mobile phone, smart phone
- Notebook PC, tablet PC
- Digital video camera
- Plaything, portable game
- Home appliance
- Packages
- SOT-23-3
- SNT-4A
