TPT487 - 3.0V to 5.5V RS-485 Transceivers

General Description

The TPT487 are IEC61000 ESD protected, 3.0V to 5.5V powered transceivers that meet the RS-485 and RS-422 standards for balanced communication.

Transmitters in this family deliver exceptional differential output voltages into the RS-485 required 54Ω load.

Key Features

  • Exceeds Requirements of EIA-485 Standard.
  • Hot Plug Circuitry - Tx and Rx Outputs Remain Three- State During Power-up/Power-down.
  • Data Rate: 500 Kbps.
  • Up to 256 Nodes on a Bus (1/8 unit load) at 500kbps.
  • Full Fail-safe Receiver (Open, Short, Terminated).
  • Wide Supply Voltage 3V to 5.5V.
  • Bus-Pin Protection: ±18 kV HBM ESD ±15 kV IEC61000-4-2 Contact Discharge ±18 kV IEC61000-4-2 Air Discharge.
  • 40°C to 125°C Operation Temperature Range 3.0V to 5.5V.

📥 Download Datasheet

Datasheet Details

Part number TPT487
Manufacturer 3PEAK
File Size 891.15 KB
Description 3.0V to 5.5V RS-485 Transceivers
Datasheet download datasheet TPT487 Datasheet

Other Datasheets by 3PEAK

Part Number Description
TPT480 Full Duplex RS-485 Transceivers
TPT481 3.0V to 5.5V RS-485 Transceivers
TPT482 Full Duplex RS-485 Transceivers
TPT485E RS-485 Transceiver
TPT485N Bus-Polarity Correcting RS-485 Transceiver
TPT486 Full Duplex RS-485 Transceivers
TPT488 Full Duplex RS-485 Transceivers
TPT4031 High Speed Quad Differential RS422 Driver
TPT4032 High Speed Quad Differential RS422 Receiver
TPT4089 3.3V~5.0V Full Duplex RS-485 Transceivers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

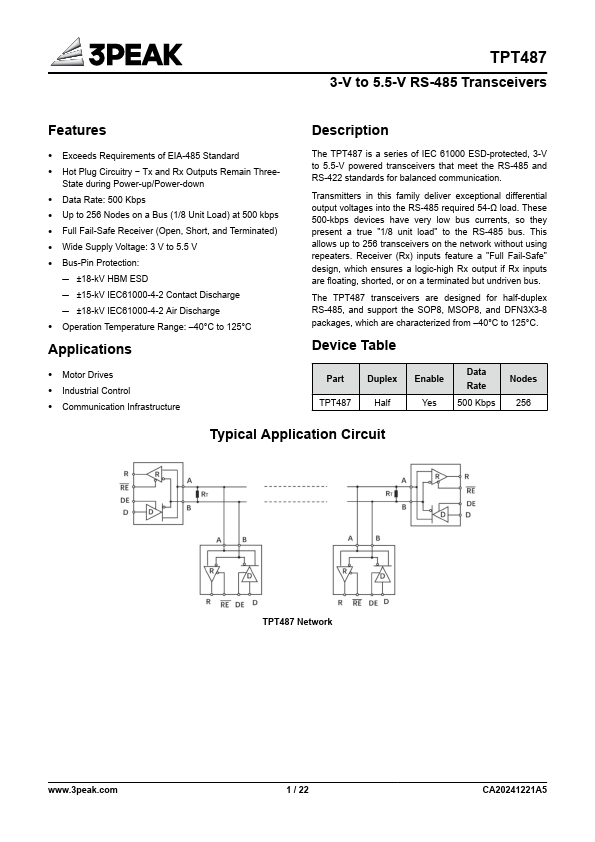

TPT487 Features ⚫ Exceeds Requirements of EIA-485 Standard ⚫ Hot Plug Circuitry - Tx and Rx Outputs Remain Three- State During Power-up/Power-down ⚫ Data Rate: 500 Kbps ⚫ Up to 256 Nodes on a Bus (1/8 unit load) at 500kbps ⚫ Full Fail-safe Receiver (Open, Short, Terminated) ⚫ Wide Supply Voltage 3V to 5.5V ⚫ Bus-Pin Protection: ±18 kV HBM ESD ±15 kV IEC61000-4-2 Contact Discharge ±18 kV IEC61000-4-2 Air Discharge ⚫ –40°C to 125°C Operation Temperature Range 3.0V to 5.5V RS-485 Transceivers Description The TPT487 are IEC61000 ESD protected, 3.0V to 5.5V powered transceivers that meet the RS-485 and RS-422 standards for balanced communication. Transmitters in this family deliver exceptional differential output voltages into the RS-485 required 54Ω load.
