SMAJ3.3A - 3.3V 400W Surface Mount Transient Voltage Suppressor Rectifiers

The SMAJ3.3A by zhide is a 3.3V 400W Surface Mount Transient Voltage Suppressor Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	SMAJ3.3A
Manufacturer	zhide
File Size	169.00 KB
Description	3.3V 400W Surface Mount Transient Voltage Suppressor Rectifiers
Datasheet	SMAJ3.3A-zhide.pdf

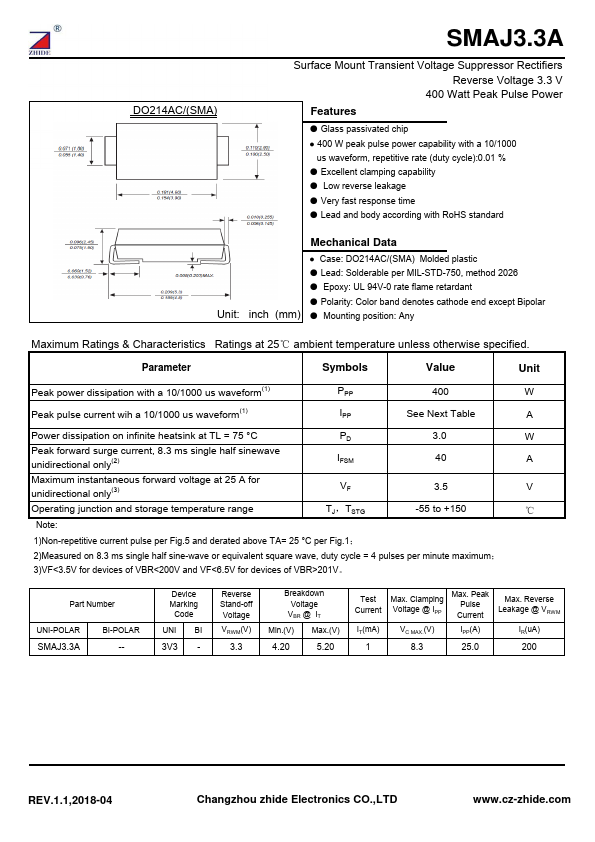

Additional preview pages of the SMAJ3.3A datasheet.

Glass passivated chip.
400 W peak pulse power capability with a 10/1000 us waveform, repetitive rate (duty cycle):0.01 %.
Excellent clamping capability.
Low reverse leakage.
Very fast response time.
Lead and body according with RoHS standard Mechanical Data.
Case: DO214AC/(SMA) Molded plastic.
Lead: Solderable per MIL-STD-750, method 2026.
Epoxy: UL 94V-0 rate flame retardant.
Polarity: Color band denotes cathode end except Bipolar Unit: inch (.
