Description

WTM20N65AF,WTM20N65AP,WTM20N65AZ, WTM20N65AT,WTM20N65AMP,WTM20N65AGF .

📥 Download Datasheet

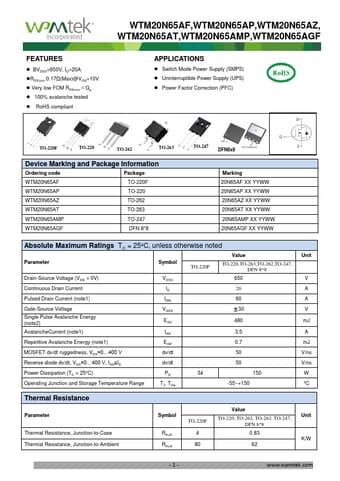

WTM20N65AP Datasheet Preview — This datasheet PDF includes multiple part numbers: WTM20N65AP, WTM20N65AF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: WTM20N65AP, WTM20N65AF
Manufacturer: wpmtek
File Size: 1.40 MB
Datasheet: WTM20N65AF-wpmtek.pdf
Description: MOSFET
Note: This datasheet PDF includes multiple part numbers: WTM20N65AP, WTM20N65AF.
Please refer to the document for exact specifications by model.

Features

* BVDSS=650V, ID=20A
* RDS(on):0.17Ω(Max)@VGS=10V
* Very low FOM RDS(on)×Qg
* 100% avalanche tested

Applications

* Switch Mode Power Supply (SMPS)
* Uninterruptible Power Supply (UPS)
* Power Factor Correction (PFC) D G D S TO-220F GD S G TO-220 D S TO-262 G S TO-263 Device Marking and Package Information Ordering code Package WTM20N65AF TO-220F WTM20N65AP TO-220 WTM20N65AZ TO-2
