uP9646 - Driver Integrated High Current 30V Power Stage Module

Description

desktop and notebook applications.

Features

  • Intel® PS4 mode support, thermal warning, over current protection, and zero current detection functions. The thermal warning output is used by system to secure safety operation. The over current protection function of the device further enhances protection for the converter. The zero current detection function provides more.

📥 Download Datasheet

Datasheet Details

Part number uP9646
Manufacturer uPI Semiconductor
File Size 877.08 KB
Description Driver Integrated High Current 30V Power Stage Module
Datasheet download datasheet uP9646 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UP9523 2A Step-Down DC/DC Regulator UPSemi
UP9971 N-CHANNEL POWER MOSFET Unisonic Technologies
UP9972 N-CHANNEL POWER MOSFET Unisonic Technologies
UP9T15G N-CHANNEL POWER MOSFET Unisonic Technologies

Other Datasheets by uPI Semiconductor

Part Number Description
uP9646B Driver Integrated High Current 30V Power Stage Module
uP9642B Smart Power Stage
uP9601T Wide Input Sensorless CC/CV Synchronous-Rectified Buck Converter
uP9614 Single Synchronous Step-Down Converter
uP9616 Wide Input Sensorless CC/CV Synchronous-Rectified Buck Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

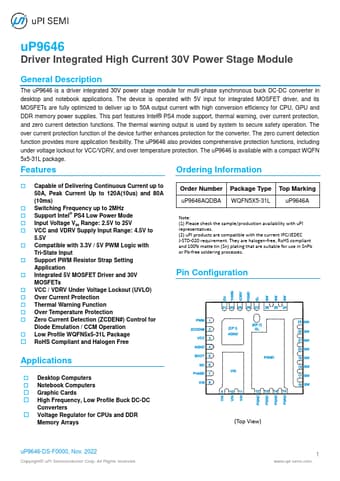

uP9646 Driver Integrated High Current 30V Power Stage Module General Description The uP9646 is a driver integrated 30V power stage module for multi-phase synchronous buck DC-DC converter in desktop and notebook applications. The device is operated with 5V input for integrated MOSFET driver, and its MOSFETs are fully optimized to deliver up to 50A output current with high conversion efficiency for CPU, GPU and DDR memory power supplies. This part features Intel® PS4 mode support, thermal warning, over current protection, and zero current detection functions. The thermal warning output is used by system to secure safety operation. The over current protection function of the device further enhances protection for the converter.
