PE30P80K - P-Channel Enhancement Mode Power MOSFET

semi one

The PE30P80K by semi one is a P-Channel Enhancement Mode Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

PE30P80K P-Channel Enhancement Mode Power MOSFET by semi one - Datasheet Preview — Official preview page of the PE30P80K P-Channel Enhancement Mode Power MOSFET datasheet (semi one).

Datasheet Details

Part number	PE30P80K
Manufacturer	semi one
File Size	933.87 KB
Description	P-Channel Enhancement Mode Power MOSFET
Datasheet	PE30P80K-semione.pdf

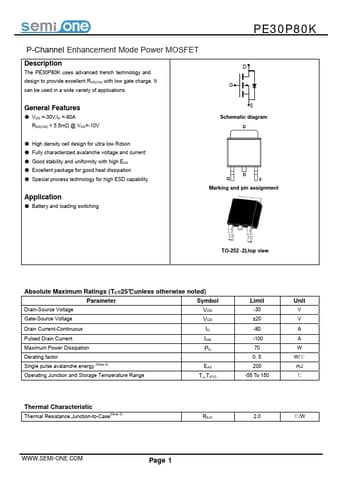

Additional preview pages of the PE30P80K datasheet.

PE30P80K Product details

Description

The PE30P80K uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS =-30V,ID =-80A RDS(ON) < 5.5mΩ @ VGS=-10V D G S Schematic diagram.
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Good stability and uniformity with high EAS.
Excellent package for good heat dissipation.
Special process technology for high ESD capability.
