100 pcs on 7” reel
Electrical Performance (Vdd = 5.0 V, Idd = 80 mA, TA = 25o C, F = 10 GHz)
)
Parameter
Min
Typ
Max
Units
)Frequency Range )Gain
Noise Figure
DC - 22 15 2.2
GHz dB dB
Input Return Loss
19
dB
Output Return Loss
18
dB
Output P1dB
19
dBm
Output IP3
26
dBm
Output I
Features
Ultra Wideband Performance.
Low Noise Figure.
Low Current Consumption.
Excellent Return Losses.
Pb-Free RoHS Compliant 4x4 QFN Package
Ordering Information
Part No. CMD240P4.
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text

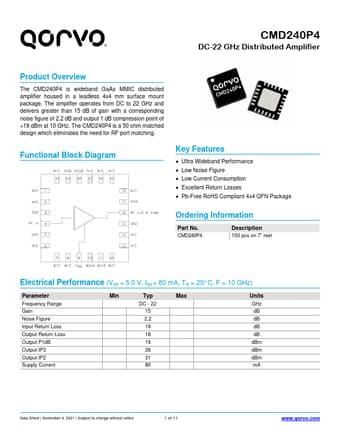

CMD240P4
®
DC-22 GHz Distributed Amplifier
Product Overview
The CMD240P4 is wideband GaAs MMIC distributed amplifier housed in a leadless 4x4 mm surface mount package. The amplifier operates from DC to 22 GHz and delivers greater than 15 dB of gain with a corresponding noise figure of 2.2 dB and output 1 dB compression point of +19 dBm at 10 GHz. The CMD240P4 is a 50 ohm matched design which eliminates the need for RF port matching.
Functional Block Diagram
Key Features
• Ultra Wideband Performance • Low Noise Figure • Low Current Consumption • Excellent Return Losses • Pb-Free RoHS Compliant 4x4 QFN Package
Ordering Information
Part No. CMD240P4
Description 100 pcs on 7” reel
Electrical Performance (Vdd = 5.
CMD240P4 Datasheet
