PF6202A - High Voltage Startup Current-Mode PWM Controller

Description

Almost Lossless High Voltage Startup Circuit Brown In/Out Protection in HV Pin

X Cap.

Internal Slope Compensation VCC Over Voltage Protection Open Loop Protection(80mS Delay) 3mS Soft Start Time Fixed Switching Frequency (65KHz)

📥 Download Datasheet

Datasheet Details

Part number PF6202A
Manufacturer powerforest
File Size 185.17 KB
Description High Voltage Startup Current-Mode PWM Controller
Datasheet download datasheet PF6202A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PF608N Diode ETC
PF610BC N-Channel MOSFET UNIKC
PF610BL N-Channel Enhancement Mode MOSFET UNIKC
PF610HV MOSFET UNIKC
PF6HZ 4 Amp High Reliability Soft Glass Passivated Silicon Diodes Diotec Electronics

Other Datasheets by powerforest

Part Number Description
PF6116 Green PWM Current-Mode Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

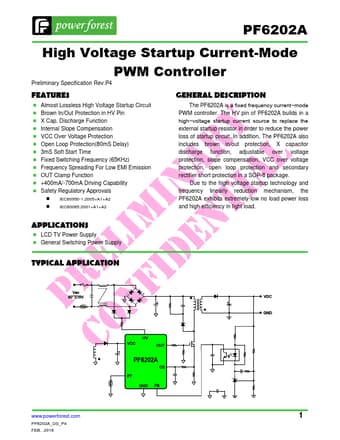

PF6202A High Voltage Startup Current-Mode PWM Controller Preliminary Specification Rev.P4 FEATURES GENERAL DESCRIPTION  Almost Lossless High Voltage Startup Circuit  Brown In/Out Protection in HV Pin  X Cap. Discharge Function  Internal Slope Compensation  VCC Over Voltage Protection  Open Loop Protection(80mS Delay)  3mS Soft Start Time  Fixed Switching Frequency (65KHz)  Frequency Spreading For Low EMI Emission  OUT Clamp Function  +400mA/-700mA Driving Capability  Safety Regulatory Approvals  IEC60950-1:2005+A1+A2  IEC60065:2001+A1+A2 The PF6202A is a fixed frequency current−mode PWM controller. The HV pin of PF6202A builds in a high−voltage startup current source to replace the external startup resistor in order to reduce the power loss of startup circuit.
