104-1-B-5-2D - High Voltage SIL/SIP Reed Relays

Download the 104-1-B-5-2D datasheet PDF. This datasheet also covers the 104-1-A-5-1D variant, as both devices belong to the same high voltage sil/sip reed relays family and are provided as variant models within a single manufacturer datasheet.

Features

  • zz Small size zz Internal mu-metal magnetic screen zz One or two switches in a single package zz Form A (energise to make) or Form B (energise to break) configurations zz Dry and mercury wetted switches available zz 3, 5, 12 and 24 Volt coils with or without internal diode zz 100% tested for dynamic contact resistance for guaranteed performance The Series 104 is a range of Single-In-Line reed relays intended for voltages that are beyond the capabilities of conventional SIL reed relays. They are.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (104-1-A-5-1D-pickering.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 104-1-B-5-2D
Manufacturer pickering
File Size 412.01 KB
Description High Voltage SIL/SIP Reed Relays
Datasheet download datasheet 104-1-B-5-2D Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1048 Tube Philips
1049 Tube Philips
104GCR050M General Purpose Ceramic Disc Capacitors Illinois Capacitor
104GCR050Z General Purpose Ceramic Disc Capacitors Illinois Capacitor
104NU70 Transistor Tesla Elektronicke

Other Datasheets by pickering

Part Number Description
104-1-B-5-1D High Voltage SIL/SIP Reed Relays
104-1-B-12-1D High Voltage SIL/SIP Reed Relays
104-1-B-12-2D High Voltage SIL/SIP Reed Relays
104-1-B-24-1D High Voltage SIL/SIP Reed Relays
104-1-B-24-2D High Voltage SIL/SIP Reed Relays

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

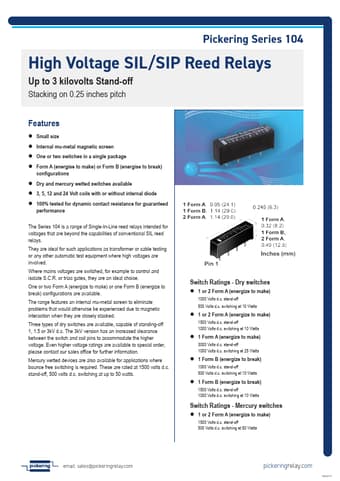

Pickering Series 104 High Voltage SIL/SIP Reed Relays Up to 3 kilovolts Stand-off Stacking on 0.25 inches pitch Features zz Small size zz Internal mu-metal magnetic screen zz One or two switches in a single package zz Form A (energise to make) or Form B (energise to break) configurations zz Dry and mercury wetted switches available zz 3, 5, 12 and 24 Volt coils with or without internal diode zz 100% tested for dynamic contact resistance for guaranteed performance The Series 104 is a range of Single-In-Line reed relays intended for voltages that are beyond the capabilities of conventional SIL reed relays. They are ideal for such applications as transformer or cable testing or any other automatic test equipment where high voltages are involved.
