SZ1SMB5935BT3G-VF01, SZ1SMB5914BT3G-VF01 - 3 Watt Plastic Surface Mount Zener Voltage Regulators

onsemi

📥 Download Datasheet

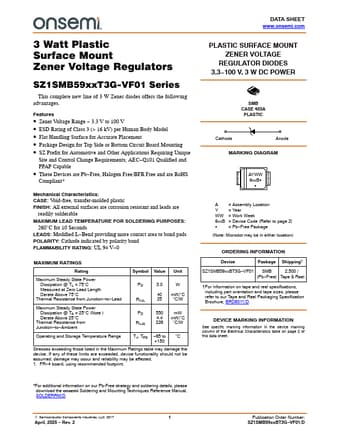

SZ1SMB5935BT3G-VF01 Datasheet Preview — This datasheet PDF includes multiple part numbers: SZ1SMB5935BT3G-VF01, SZ1SMB5914BT3G-VF01. Please refer to the document for exact specifications by model.

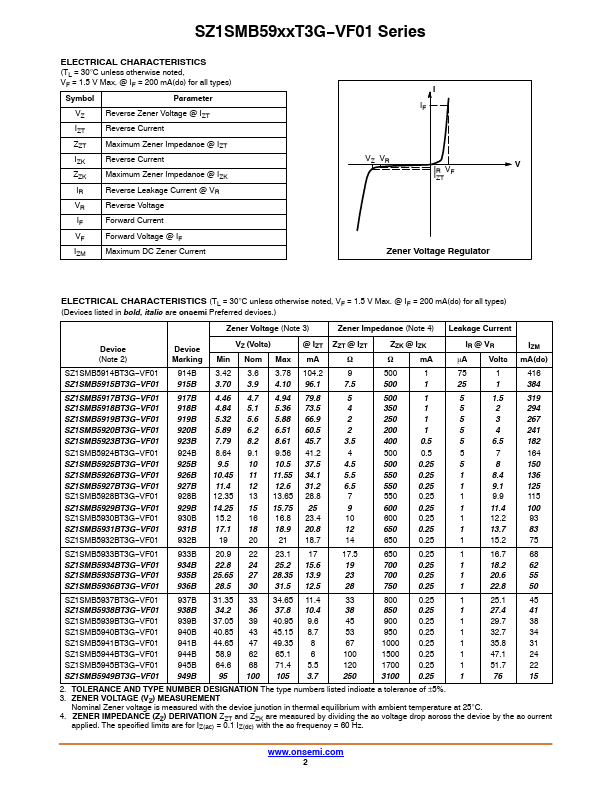

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SZ1SMB5935BT3G-VF01, SZ1SMB5914BT3G-VF01
Manufacturer	onsemi
File Size	208.26 KB
Description	3 Watt Plastic Surface Mount Zener Voltage Regulators
Datasheet	SZ1SMB5914BT3G-VF01-onsemi.pdf
Note	This datasheet PDF includes multiple part numbers: SZ1SMB5935BT3G-VF01, SZ1SMB5914BT3G-VF01. Please refer to the document for exact specifications by model.

SZ1SMB5935BT3G-VF01 Product details

Features

Zener Voltage Range.
3.3 V to 100 V.
ESD Rating of Class 3 (> 16 kV) per Human Body Model.
Flat Handling Surface for Accurate Placement.
Package Design for Top Side or Bottom Circuit Board Mounting.
SZ Prefix for Automotive and Other.
