NTC020N120SC1 - SiC MOSFET

onsemi

The NTC020N120SC1 by onsemi is a SiC MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

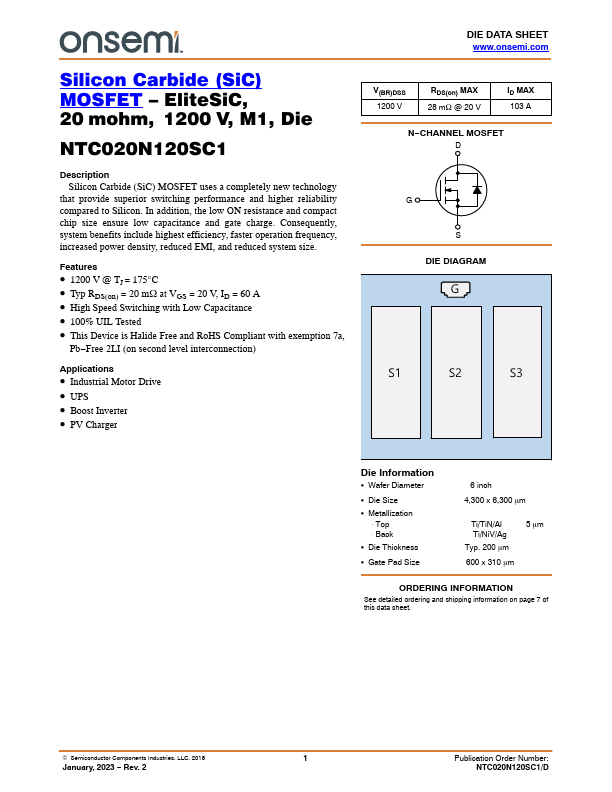

NTC020N120SC1 SiC MOSFET by onsemi - Datasheet Preview — Official preview page of the **NTC020N120SC1** SiC MOSFET datasheet (onsemi).

Datasheet Details

Part number	NTC020N120SC1
Manufacturer	onsemi
File Size	167.62 KB
Description	SiC MOSFET
Datasheet	NTC020N120SC1-onsemi.pdf

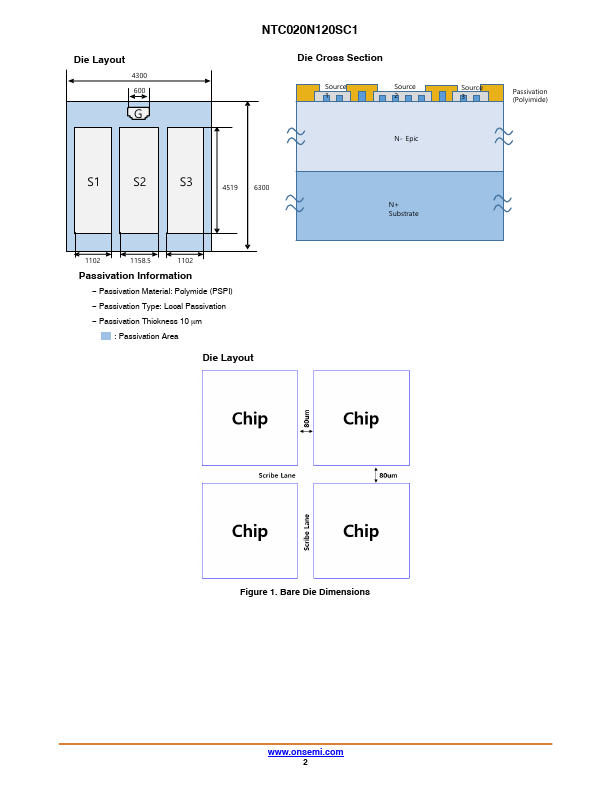

Additional preview pages of the NTC020N120SC1 datasheet.

NTC020N120SC1 Product details

Description

Silicon Carbide (SiC) MOSFET uses a completely new technology that provide superior switching performance and higher reliability compared to Silicon.In addition, the low ON resistance and compact chip size ensure low capacitance and gate charge.Consequently, system benefits include highest efficiency, faster operation frequency, increased power density, reduced EMI, and reduced system size.

Features

1200 V @ TJ = 175°C.
Typ RDS(on) = 20 mW at VGS = 20 V, ID = 60 A.
High Speed Switching with Low Capacitance.
100% UIL Tested.
This Device is Halide Free and RoHS Compliant with exemption 7a, Pb.
Free 2LI (on second level interconnection).
