NCV92310 Automotive Power Over Coax Power Management

NCV92310 Description

Automotive Power Over Coax Power Management IC for Safety Camera NCV92310 The NCV92310 is part of the onsemi image sensor power management IC (PMIC) f.

NCV92310 Features

* 1 Power Over Coax DCDC Converter (2.15 MHz, 2.2 mH/10 mF, 1.2 A)
* Programmable Output Voltage from 2.8 V to 5.0 V by 100 mV Steps
* 1 DCDC Converters (2.15 MHz, 1 mH/10 mF, 1 A)
* Programmable Output Voltage from 0.6 V to 2.175 V by 25 mV Steps
* 1 DCDC Con

NCV92310 Applications

* Power Over Coax POL Supply
* Automotive ADAS Camera Modules
* Industrial Camera Modules DATA SHEET www. onsemi. com QFNW20 3.5x3.5, 0.5P CASE 484AV MARKING DIAGRAM NCV92 310AB AWLYWW NCV92310AB A WL Y WW = Specific Device Code = Assembly Location = Wafer Lot = Year = Wor

📥 Download Datasheet

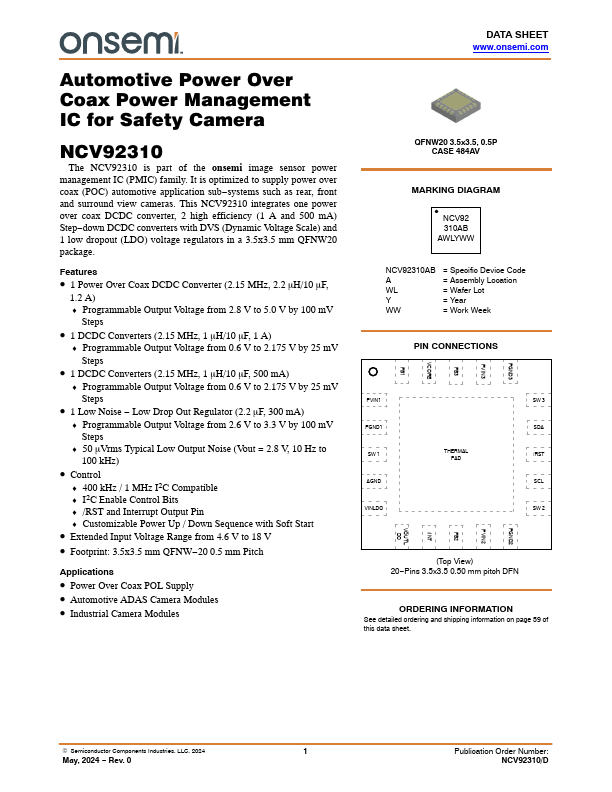

Preview of NCV92310 PDF

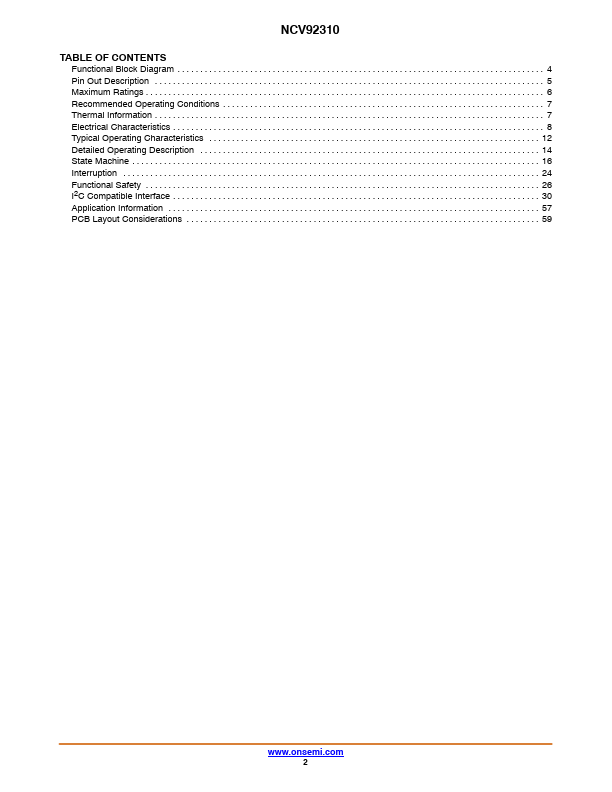

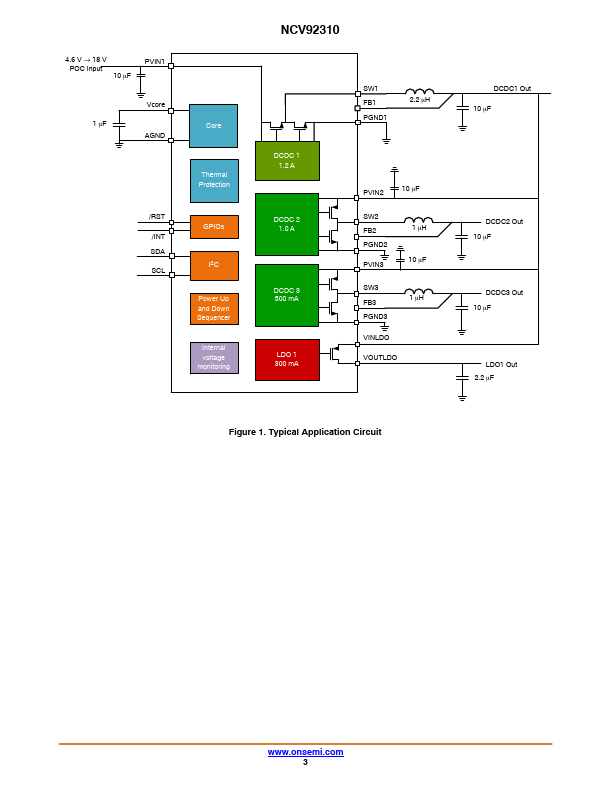

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NCV92310
Manufacturer
onsemi
File Size
1.82 MB
Datasheet
NCV92310-onsemi.pdf
Description
Automotive Power Over Coax Power Management
