FQPF3N80C, FQP3N80C - N-Channel MOSFET

onsemi

📥 Download Datasheet

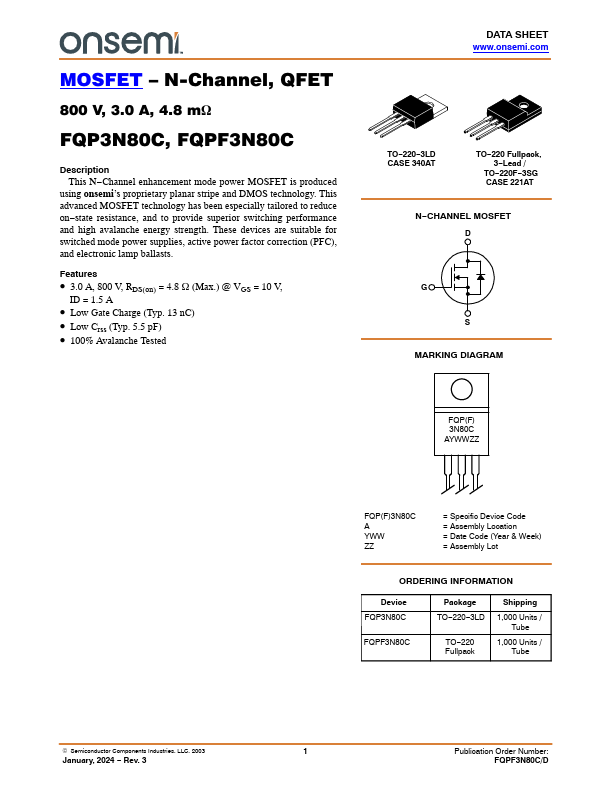

FQPF3N80C Datasheet Preview — This datasheet PDF includes multiple part numbers: FQPF3N80C, FQP3N80C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	FQPF3N80C, FQP3N80C
Manufacturer	onsemi
File Size	425.84 KB
Description	N-Channel MOSFET
Datasheet	FQP3N80C-onsemi.pdf
Note	This datasheet PDF includes multiple part numbers: FQPF3N80C, FQP3N80C. Please refer to the document for exact specifications by model.

FQPF3N80C Product details

Description

This N Channel enhancement mode power MOSFET is produced using onsemi’s proprietary planar stripe and DMOS technology.This advanced MOSFET technology has been especially tailored to reduce on state resistance, and to provide superior switching performance and high avalanche energy strength.

Features

3.0 A, 800 V, RDS(on) = 4.8 W (Max. ) @ VGS = 10 V, ID = 1.5 A.
Low Gate Charge (Typ. 13 nC).
Low Crss (Typ. 5.5 pF).
100% Avalanche Tested DATA SHEET www. onsemi. com TO.
220.
3LD CASE 340AT TO.
220 Fullpack, 3.
Lead / TO.
220F.
3SG CASE 221AT N.
