FPF1006, FPF1005 - P-Channel MOSFET load switches

onsemi

The FPF1006 by onsemi is a P-Channel MOSFET load switches. Below is the official datasheet preview.

📥 Download Datasheet

FPF1006 P-Channel MOSFET load switches by onsemi - Datasheet Preview — Official preview page of the **FPF1006** P-Channel MOSFET load switches datasheet (onsemi).

Datasheet Details

Part number	FPF1006, FPF1005
Manufacturer	onsemi
File Size	333.76 KB
Description	P-Channel MOSFET load switches
Datasheet	FPF1005-onsemi.pdf
Note	This datasheet PDF includes multiple part numbers: FPF1006, FPF1005. Please refer to the document for exact specifications by model.

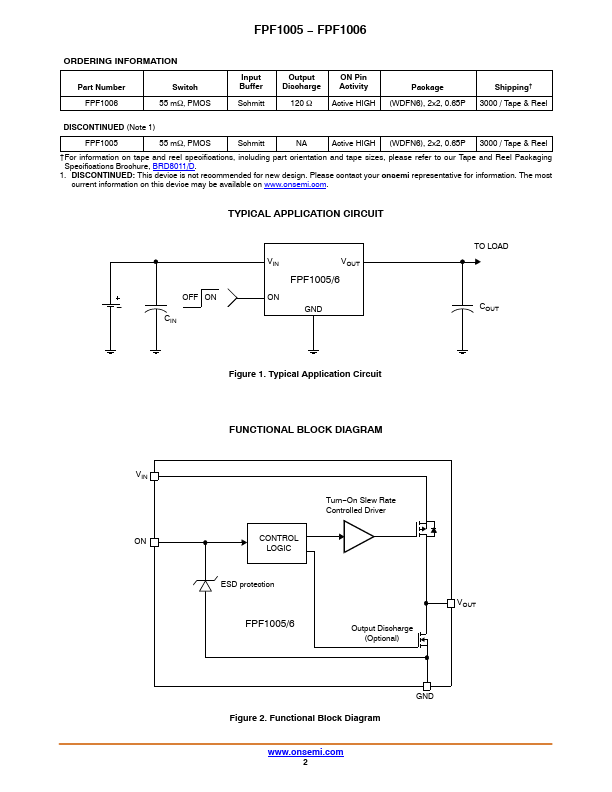

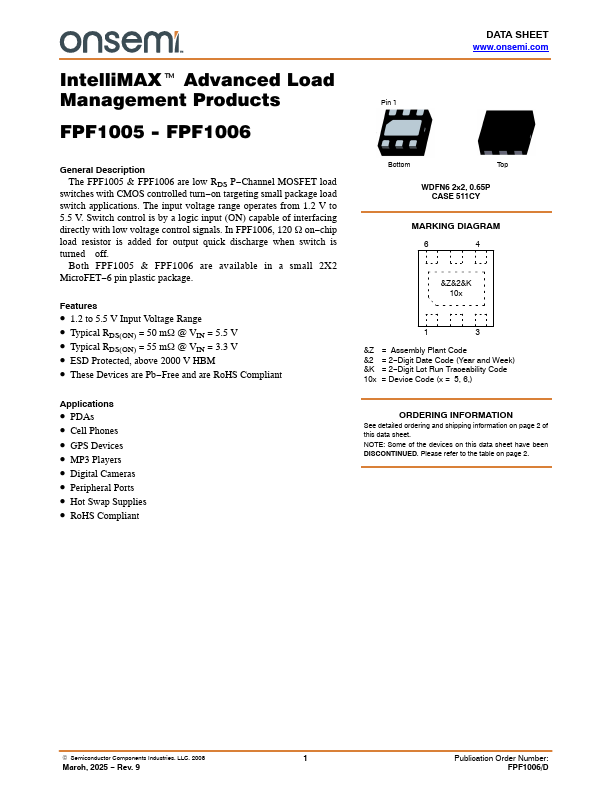

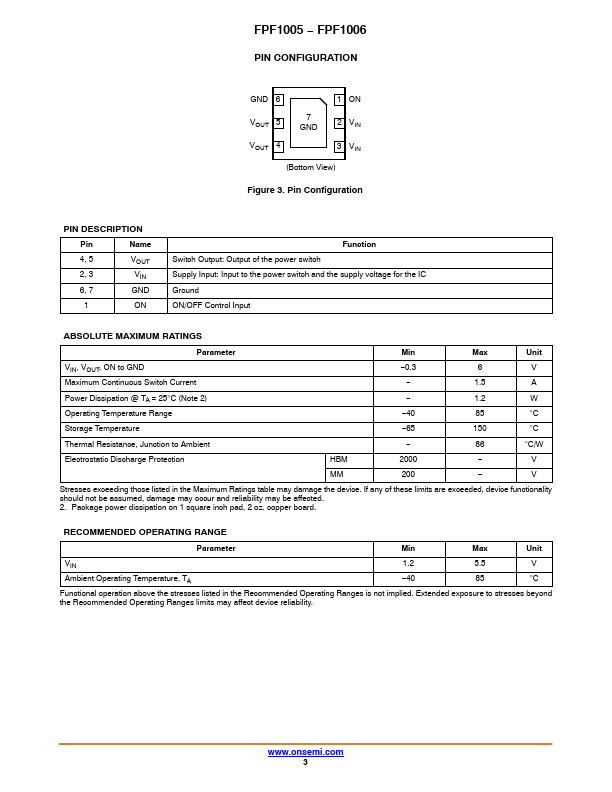

Additional preview pages of the FPF1006 datasheet.

FPF1006 Product details

Description

The FPF1005 & FPF1006 are low RDS P Channel MOSFET load switches with CMOS controlled turn on targeting small package load switch applications. chip load resistor is added for output quick discharge when switch is turned off.

Features

1.2 to 5.5 V Input Voltage Range.
Typical RDS(ON) = 50 mW @ VIN = 5.5 V.
Typical RDS(ON) = 55 mW @ VIN = 3.3 V.
ESD Protected, above 2000 V HBM.
These Devices are Pb.
Free and are RoHS Compliant.
