FPF1005 - P-Channel MOSFET load switches

onsemi

The FPF1005 by onsemi is a P-Channel MOSFET load switches. Below is the official datasheet preview.

📥 Download Datasheet

FPF1005 P-Channel MOSFET load switches by onsemi - Datasheet Preview — Official preview page of the **FPF1005** P-Channel MOSFET load switches datasheet (onsemi).

Datasheet Details

Part number	FPF1005
Manufacturer	onsemi
File Size	333.76 KB
Description	P-Channel MOSFET load switches
Datasheet	FPF1005-onsemi.pdf

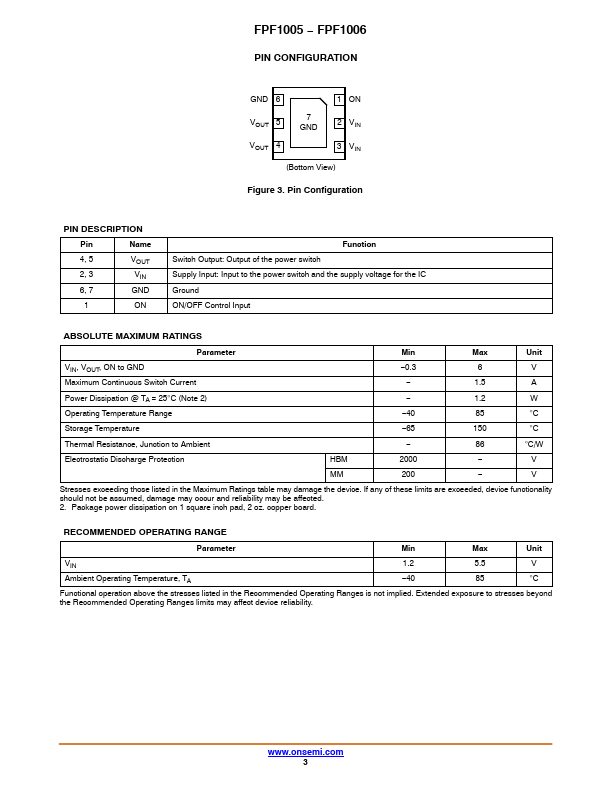

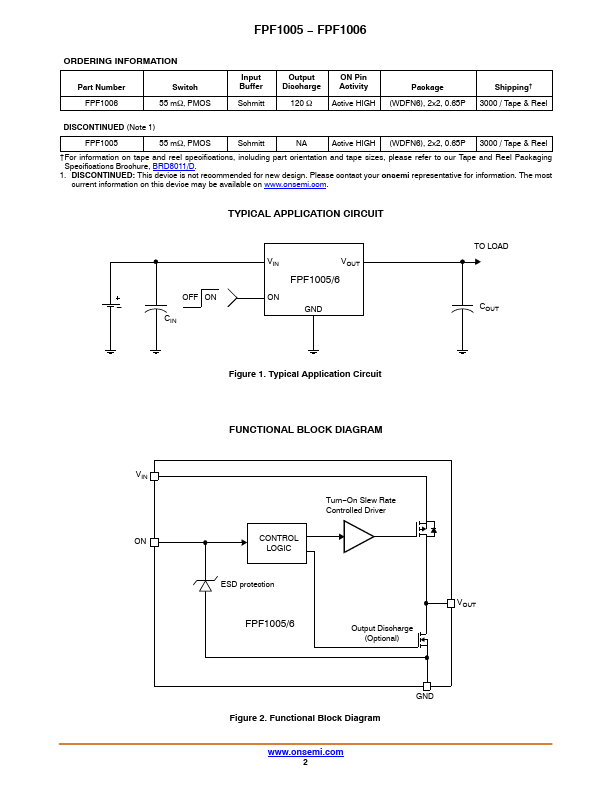

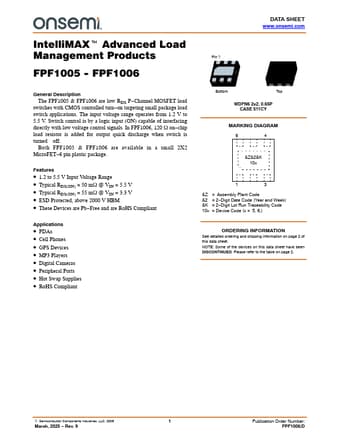

Additional preview pages of the FPF1005 datasheet.

FPF1005 Product details

Description

The FPF1005 & FPF1006 are low RDS P Channel MOSFET load switches with CMOS controlled turn on targeting small package load switch applications. chip load resistor is added for output quick discharge when switch is turned off.

Features

1.2 to 5.5 V Input Voltage Range.
Typical RDS(ON) = 50 mW @ VIN = 5.5 V.
Typical RDS(ON) = 55 mW @ VIN = 3.3 V.
ESD Protected, above 2000 V HBM.
These Devices are Pb.
Free and are RoHS Compliant.
