PTVS64VP1UP-Q, PTVS3V3P1UP-Q - 600W Transient Voltage Suppressor

Name: PTVS64VP1UP-Q
SKU: PTVS64VP1UP-Q-1538514

nexperia

📥 Download Datasheet

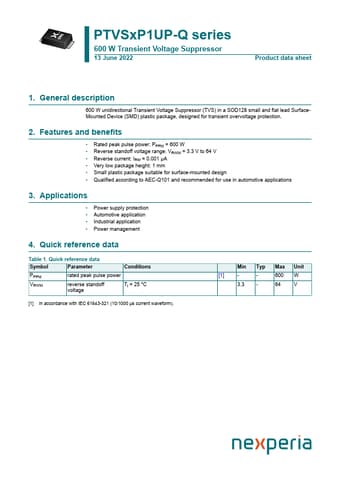

PTVS64VP1UP-Q Datasheet Preview — This datasheet PDF includes multiple part numbers: PTVS64VP1UP-Q, PTVS3V3P1UP-Q. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PTVS64VP1UP-Q, PTVS3V3P1UP-Q
Manufacturer	nexperia
File Size	218.07 KB
Description	600W Transient Voltage Suppressor
Datasheet	PTVS3V3P1UP-Q-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: PTVS64VP1UP-Q, PTVS3V3P1UP-Q. Please refer to the document for exact specifications by model.

PTVS64VP1UP-Q Product details

Description

600 W unidirectional Transient Voltage Suppressor (TVS) in a SOD128 small and flat lead SurfaceMounted Device (SMD) plastic package, designed for transient overvoltage protection.

Features

Rated peak pulse power: PPPM = 600 W.
Reverse standoff voltage range: VRWM = 3.3 V to 64 V.
Reverse current: IRM = 0.001 μA.
Very low package height: 1 mm.
Small plastic package suitable for surface-mounted design.
Qualified according to AEC-Q101 and recommended for use in automotive.
