PTVS60VS1UR-Q, PTVS3V3S1UR-Q - 400W Transient Voltage Suppressor

nexperia

The PTVS60VS1UR-Q by nexperia is a 400W Transient Voltage Suppressor. Below is the official datasheet preview.

📥 Download Datasheet

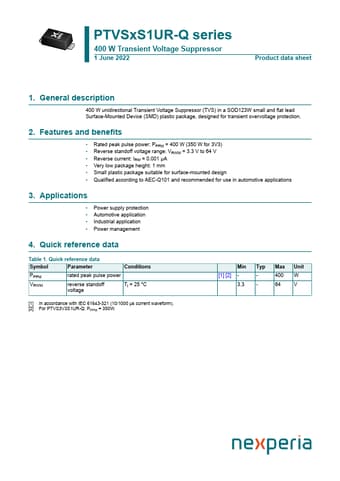

PTVS60VS1UR-Q 400W Transient Voltage Suppressor by nexperia - Datasheet Preview — Official preview page of the **PTVS60VS1UR-Q** 400W Transient Voltage Suppressor datasheet (nexperia).

Datasheet Details

Part number	PTVS60VS1UR-Q, PTVS3V3S1UR-Q
Manufacturer	nexperia
File Size	215.49 KB
Description	400W Transient Voltage Suppressor
Datasheet	PTVS3V3S1UR-Q-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: PTVS60VS1UR-Q, PTVS3V3S1UR-Q. Please refer to the document for exact specifications by model.
Additional preview pages of the PTVS60VS1UR-Q datasheet.

PTVS60VS1UR-Q Product details

Description

400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection.

Features

Rated peak pulse power: PPPM = 400 W (350 W for 3V3).
Reverse standoff voltage range: VRWM = 3.3 V to 64 V.
Reverse current: IRM = 0.001 μA.
Very low package height: 1 mm.
Small plastic package suitable for surface-mounted design.
Qualified according to AEC-Q101 and recommended for use in automotive.
