PTVS17VS1UTR - High-temperature 400W Transient Voltage Suppressor

Download the PTVS17VS1UTR datasheet PDF. This datasheet also covers the PTVS3V3S1UTR variant, as both devices belong to the same high-temperature 400w transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

General Description

400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead low-profile Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection in high-temperature applications.

Key Features

  • Rated peak pulse power: PPPM = 400 W (350 W for 3V3).
  • Reverse standoff voltage range: VRWM = 3.3 V to 64 V.
  • Reverse current: IRM = 0.001 A.
  • Very low package height: 1 mm.
  • High temperature stability Tj  185 C.
  • Small plastic package suitable for surface-mounted design.
  • AEC-Q101 qualified 1.3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PTVS3V3S1UTR-nexperia.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PTVS17VS1UTR
Manufacturer Nexperia
File Size 647.56 KB
Description High-temperature 400W Transient Voltage Suppressor
Datasheet download datasheet PTVS17VS1UTR Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PTVS17VS1UR 400W Transient Voltage Suppressor NXP
PTVS17VP1UP 600 W Transient Voltage Suppressor NXP
PTVS10VP1UP 600 W Transient Voltage Suppressor NXP
PTVS10VS1UR 400W Transient Voltage Suppressor NXP
PTVS10VU1UPA 300 W Transient Voltage Suppressor NXP

Other Datasheets by Nexperia

Part Number Description
PTVS17VS1UTR-Q High-temperature 400W Transient Voltage Suppressor
PTVS17VS1UR 400W Transient Voltage Suppressor
PTVS17VS1UR-Q 400W Transient Voltage Suppressor
PTVS17VP1UP 600W Transient Voltage Suppressor
PTVS17VP1UP-Q 600W Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

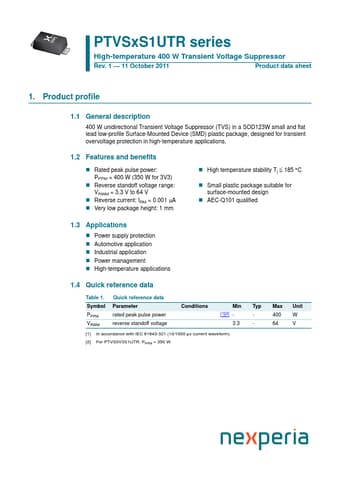

PTVSxS1UTR series High-temperature 400 W Transient Voltage Suppressor Rev. 1 — 11 October 2011 Product data sheet 1. Product profile 1.1 General description 400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead low-profile Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection in high-temperature applications. 1.2 Features and benefits  Rated peak pulse power: PPPM = 400 W (350 W for 3V3)  Reverse standoff voltage range: VRWM = 3.3 V to 64 V  Reverse current: IRM = 0.001 A  Very low package height: 1 mm  High temperature stability Tj  185 C  Small plastic package suitable for surface-mounted design  AEC-Q101 qualified 1.
