PRTR5V0U2X-Q - Ultra low capacitance double rail-to-rail ESD protection diode

nexperia

📥 Download Datasheet

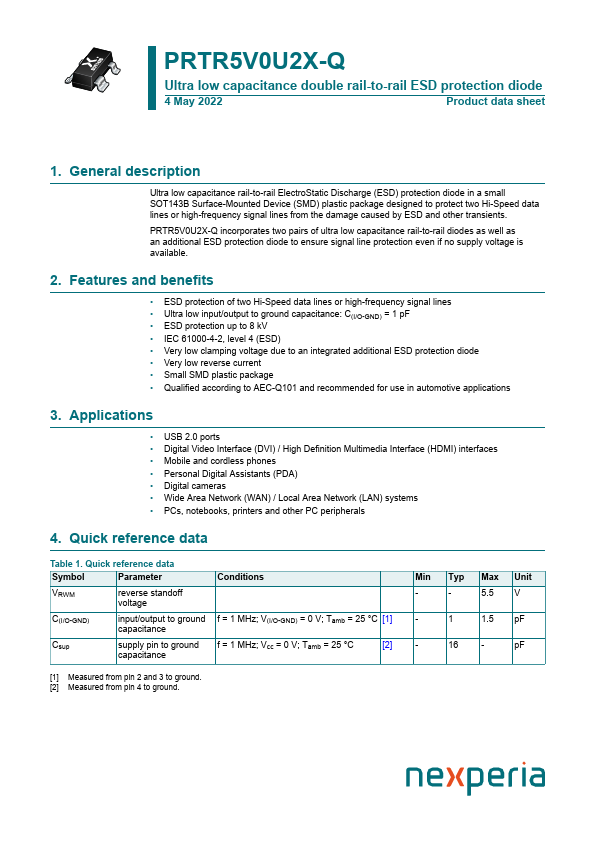

PRTR5V0U2X-Q Datasheet Preview — Preview of PRTR5V0U2X-Q PDF

Datasheet Details

Part number	PRTR5V0U2X-Q
Manufacturer	nexperia
File Size	227.48 KB
Description	Ultra low capacitance double rail-to-rail ESD protection diode
Datasheet	PRTR5V0U2X-Q-nexperia.pdf

PRTR5V0U2X-Q Product details

Description

Ultra low capacitance rail-to-rail ElectroStatic Discharge (ESD) protection diode in a small SOT143B Surface-Mounted Device (SMD) plastic package designed to protect two Hi-Speed data lines or high-frequency signal lines from the damage caused by ESD and other transients.

Features

ESD protection of two Hi-Speed data lines or high-frequency signal lines.
Ultra low input/output to ground capacitance: C(I/O-GND) = 1 pF.
ESD protection up to 8 kV.
IEC 61000-4-2, level 4 (ESD).
Very low clamping voltage due to an integrated additional ESD protection diode.
Very low reverse current.
Small SMD plastic package.
Qualified according to AEC-Q101 and recommended for use in automotive.
