PMSTA05-Q - 500mA NPN general-purpose transistor

nexperia

The PMSTA05-Q by nexperia is a 500mA NPN general-purpose transistor. Below is the official datasheet preview.

📥 Download Datasheet

PMSTA05-Q 500mA NPN general-purpose transistor by nexperia - Datasheet Preview — Official preview page of the PMSTA05-Q 500mA NPN general-purpose transistor datasheet (nexperia).

Datasheet Details

Part number	PMSTA05-Q
Manufacturer	nexperia
File Size	187.85 KB
Description	500mA NPN general-purpose transistor
Datasheet	PMSTA05-Q-nexperia.pdf

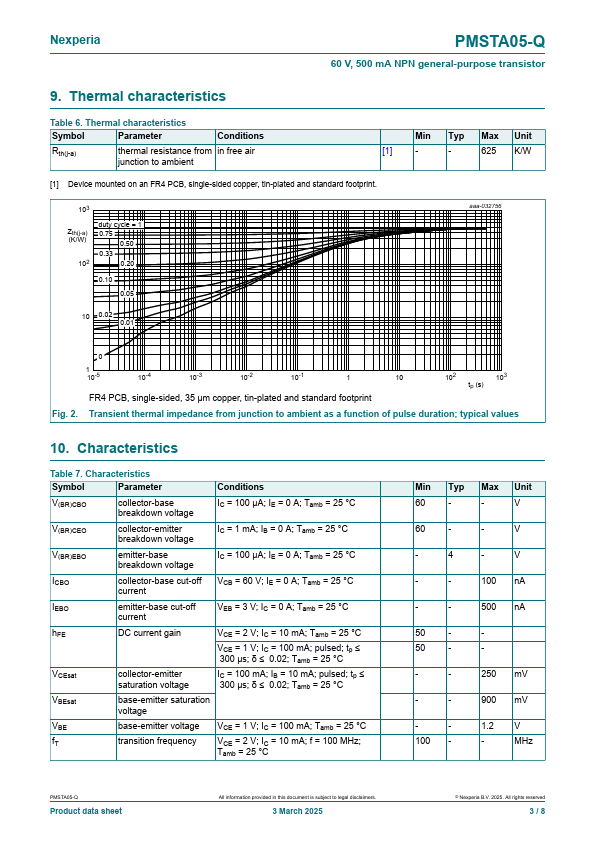

Additional preview pages of the PMSTA05-Q datasheet.

PMSTA05-Q Product details

Description

NPN transistor in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

Features

High current (max. 500 mA).
Very small SMD plastic package.
Collector-emitter voltage: 60 V.
Qualified according to AEC-Q101 and recommended for use in automotive.
