PMEG6030EP - 60V 3A Schottky barrier rectifier

PMEG6030EP Description

PMEG6030EP 60 V, 3 A low VF Schottky barrier rectifier 20 February 2023 Product data sheet 1.General .
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD128 small and flat lead Surface-Mounted De.

PMEG6030EP Features

* Average forward current: IF(AV) ≤ 3 A
* Reverse voltage: VR ≤ 60 V
* Low forward voltage
* High power capability due to clip-bond technology
* Small and flat lead SMD plastic package

PMEG6030EP Applications

* Low voltage rectification
* High efficiency DC-to-DC conversion
* Switch Mode Power Supply (SMPS)
* Reverse polarity protection
* Low power consumption applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter IF(AV) average f

📥 Download Datasheet

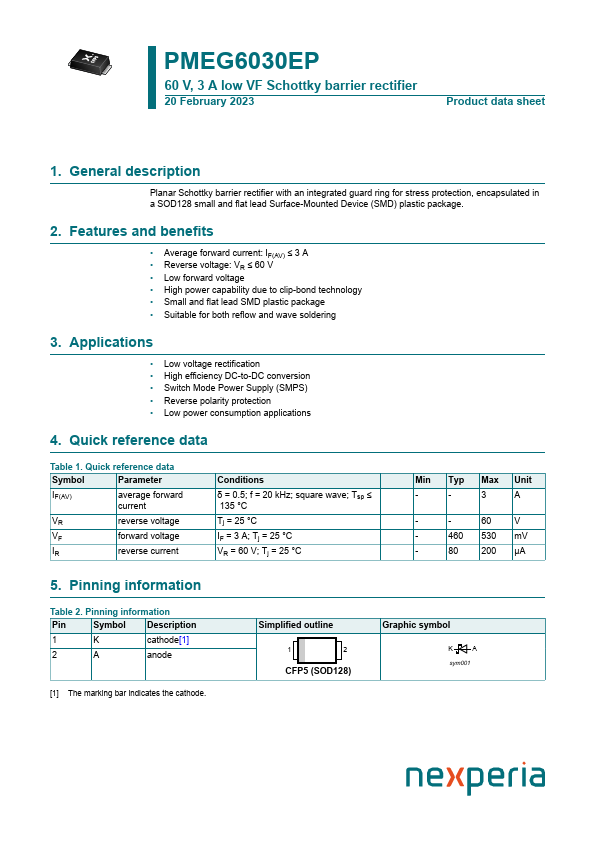

Preview of PMEG6030EP PDF

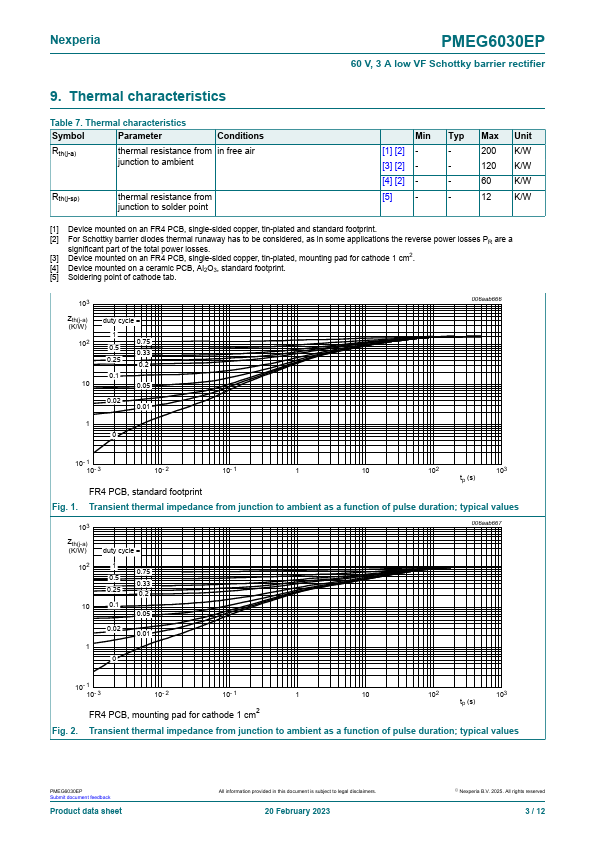

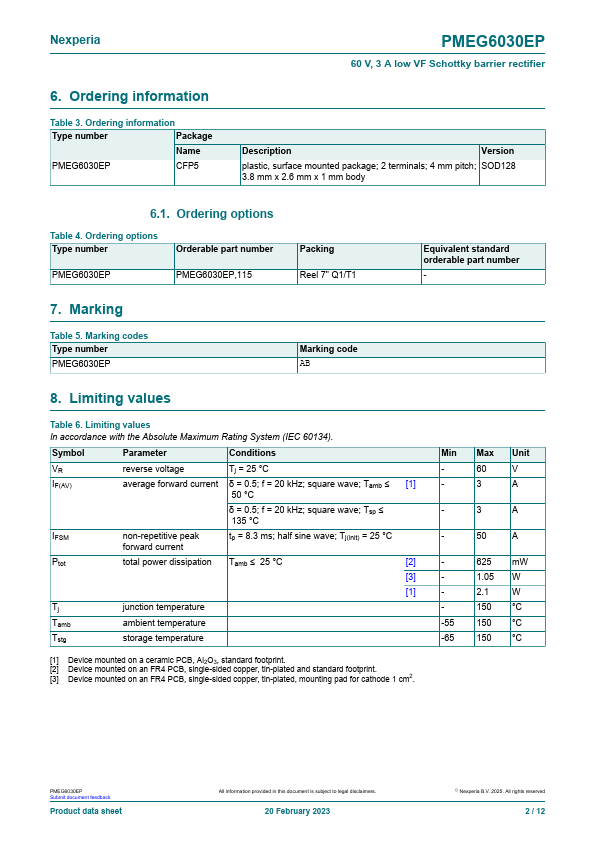

datasheet Preview Page 2 datasheet Preview Page 3
