PMEG6010ELR - 1A low leakage current Schottky barrier rectifier

PMEG6010ELR Description

PMEG6010ELR 60 V, 1 A low leakage current Schottky barrier rectifier 25 April 2018 Product data sheet 1.General .
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a.

PMEG6010ELR Features

* Average forward current: IF(AV) ≤ 1 A
* Reverse voltage: VR≤ 60 V
* Extremely low leakage current
* Low forward voltage
* High power capability due to clip-bonding technology
* Small and flat lead SMD plastic package
* AEC-Q101 qualified

PMEG6010ELR Applications

* Low voltage rectification
* High efficiency DC-to-DC conversion
* Switch mode power supply
* Reverse polarity protection 4. Quick reference data Table 1. Quick reference data Symbol Parameter IF(AV) average forward current VR reverse voltage VF forward voltag

📥 Download Datasheet

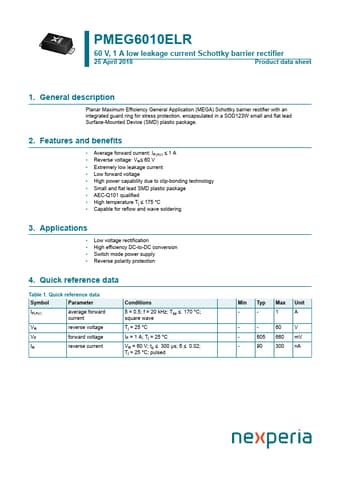

Preview of PMEG6010ELR PDF
