PMEG4020EPK - 40V 2A low VF Schottky barrier rectifier

nexperia

PMEG4020EPK Datasheet Preview — Preview of PMEG4020EPK PDF

Datasheet Details

Part number	PMEG4020EPK
Manufacturer	nexperia ↗
File Size	235.65 KB
Description	40V 2A low VF Schottky barrier rectifier
Datasheet	PMEG4020EPK-nexperia.pdf

PMEG4020EPK Product details

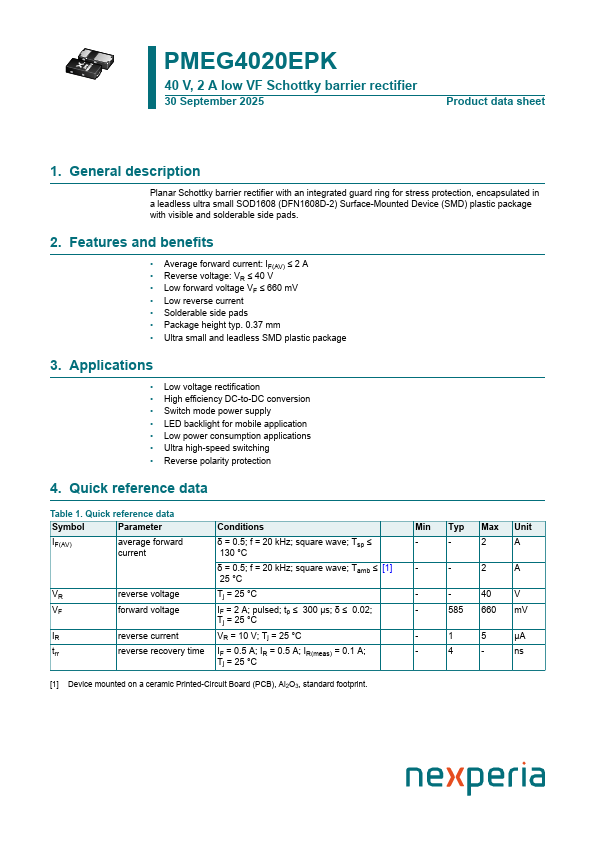

Description

Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a leadless ultra small SOD1608 (DFN1608D-2) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.

Features

Average forward current: IF(AV) ≤ 2 A.
Reverse voltage: VR ≤ 40 V.
Low forward voltage VF ≤ 660 mV.
Low reverse current.
Solderable side pads.
Package height typ. 0.37 mm.
Ultra small and leadless SMD plastic package 3.
