PMEG4010CEH-Q - 1A very low VF Schottky barrier rectifier

Name: PMEG4010CEH-Q
SKU: PMEG4010CEH-Q-1554237

nexperia

📥 Download Datasheet

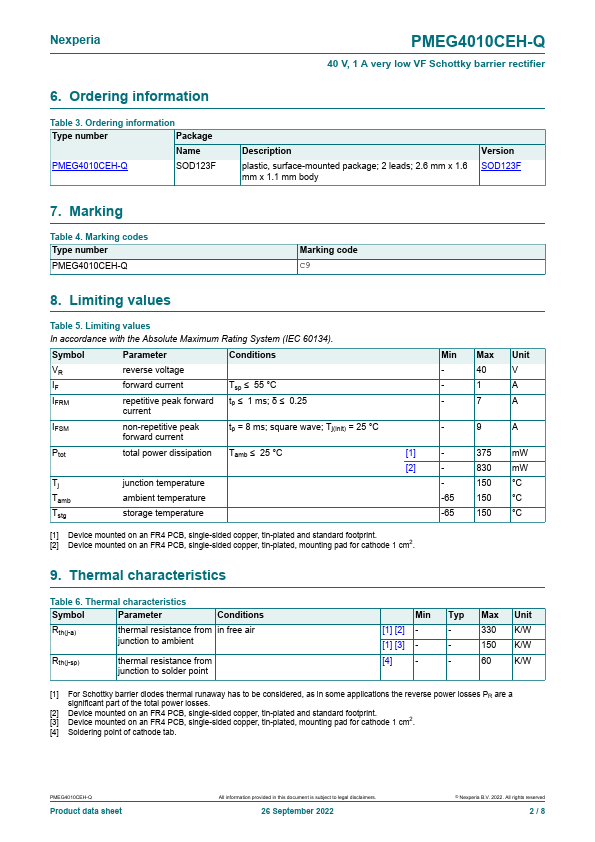

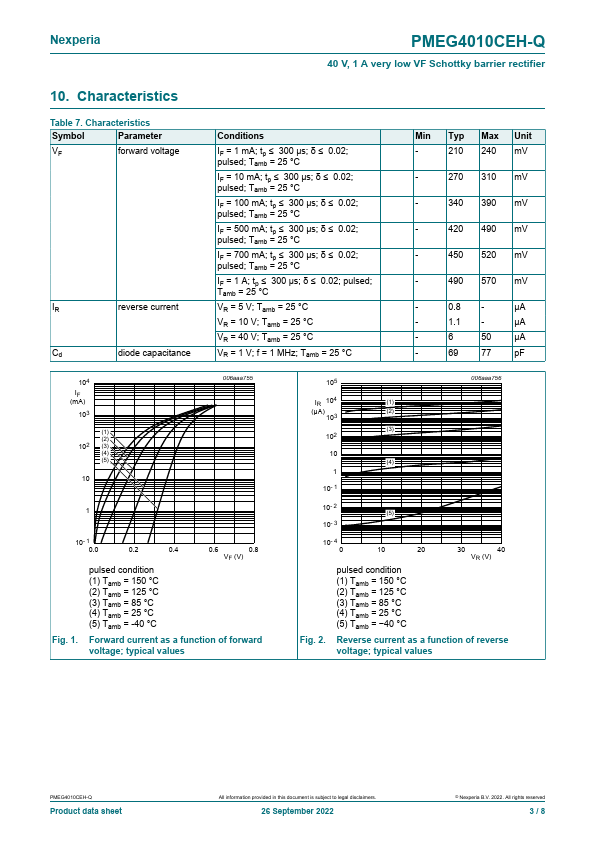

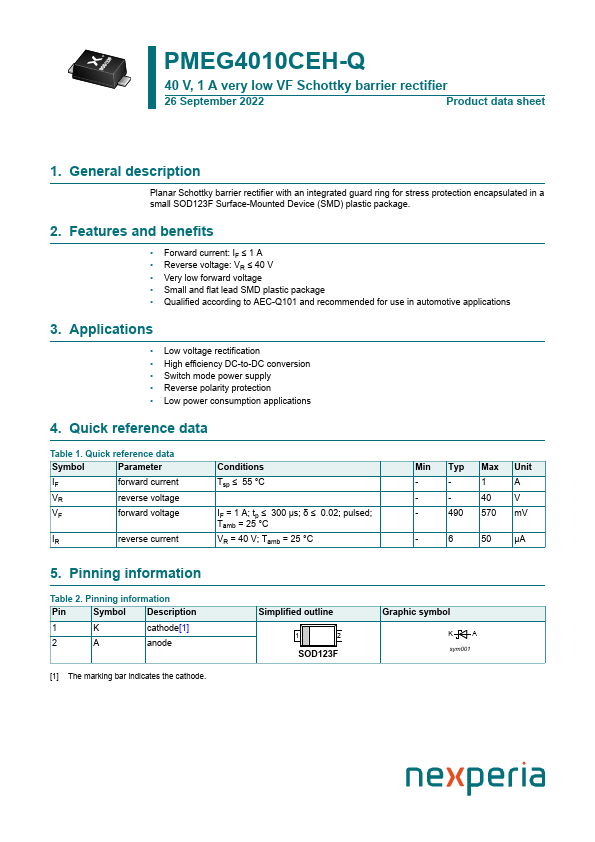

PMEG4010CEH-Q Datasheet Preview — Preview of PMEG4010CEH-Q PDF

Datasheet Details

Part number	PMEG4010CEH-Q
Manufacturer	nexperia
File Size	224.55 KB
Description	1A very low VF Schottky barrier rectifier
Datasheet	PMEG4010CEH-Q-nexperia.pdf

PMEG4010CEH-Q Product details

Description

Planar Schottky barrier rectifier with an integrated guard ring for stress protection encapsulated in a small SOD123F Surface-Mounted Device (SMD) plastic package.

Features

Forward current: IF ≤ 1 A.
Reverse voltage: VR ≤ 40 V.
Very low forward voltage.
Small and flat lead SMD plastic package.
Qualified according to AEC-Q101 and recommended for use in automotive.
