PMEG3010EXD-Q - 30V 1A Schottky barrier rectifier

PMEG3010EXD-Q Description

PMEG3010EXD-Q 30 V, 1 A Schottky barrier rectifier 23 January 2025 Product data sheet 1.General .
Planar Schottky barrier rectifier encapsulated in a CFP2-HP (SOD323HP) power flat lead SurfaceMounted Device (SMD) plastic package.

PMEG3010EXD-Q Features

* Low forward voltage
* High power capability due to clip-bond package
* Power flat lead plastic package with exposed heatsink for optimal thermal connection

PMEG3010EXD-Q Applications

* 3. Applications
* Low voltage rectification
* High efficiency DC-to-DC conversion
* Freewheeling
* Reverse polarity protection
* OR-ing 4. Quick reference data Table 1. Quick reference data Symbol Parameter IF(AV) average forward current VR reverse vo

📥 Download Datasheet

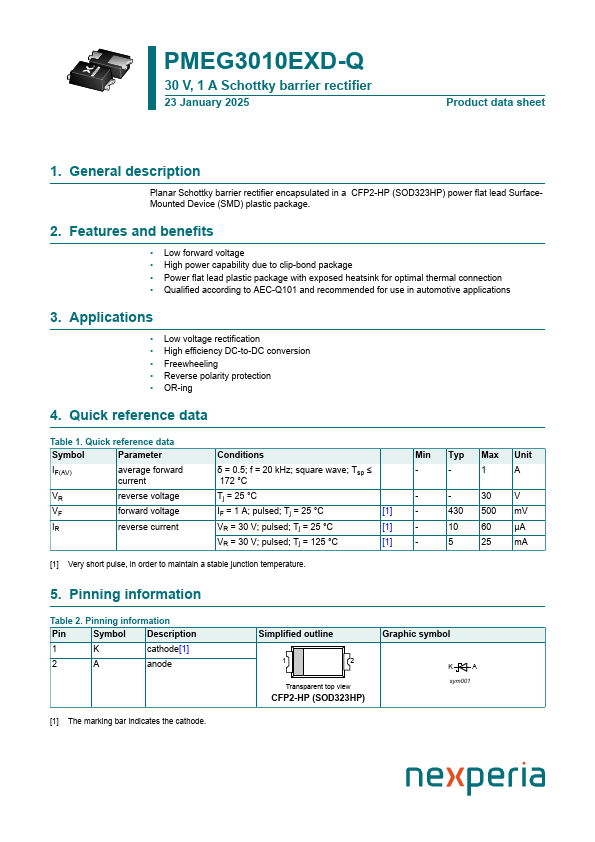

Preview of PMEG3010EXD-Q PDF

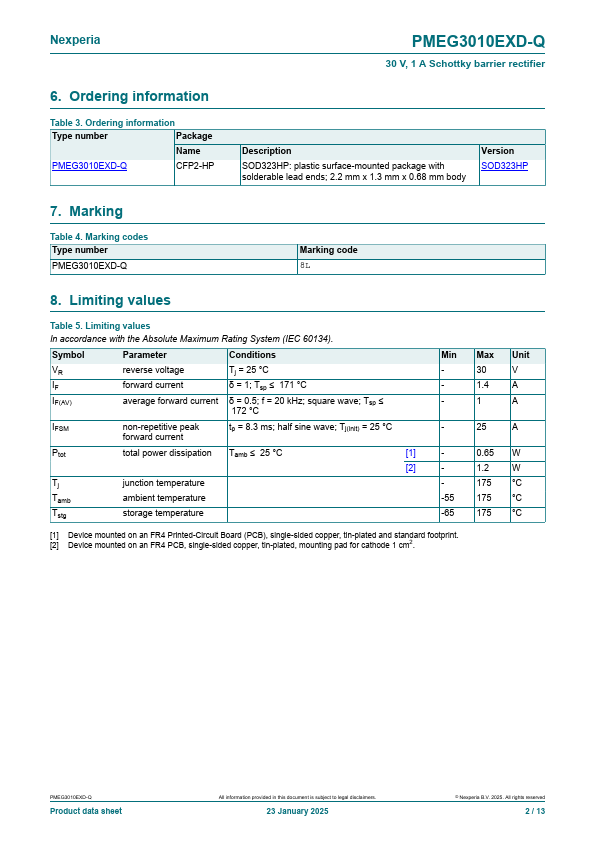

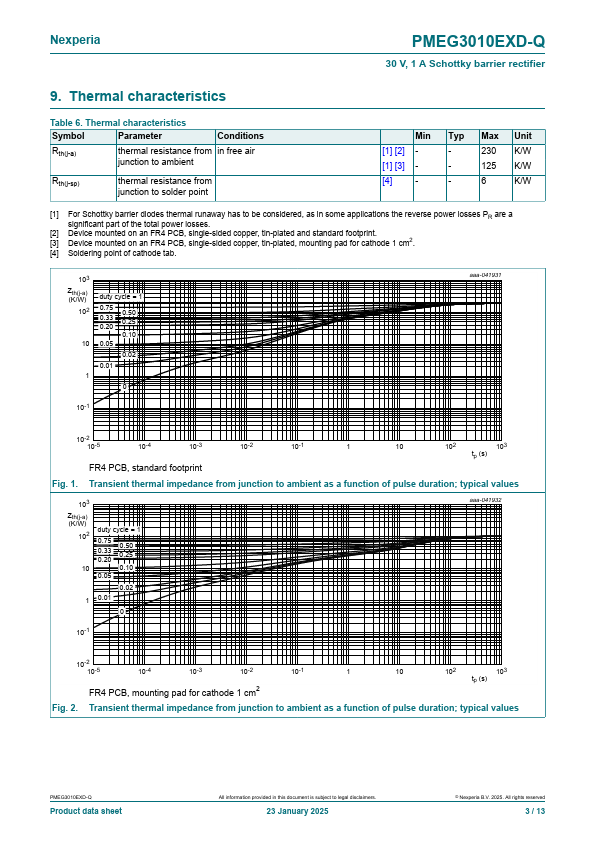

datasheet Preview Page 2 datasheet Preview Page 3
