PMEG10050ELP-Q - 100V 5A low leakage current Schottky barrier rectifier

Name: PMEG10050ELP-Q
SKU: PMEG10050ELP-Q-1577714

nexperia

📥 Download Datasheet

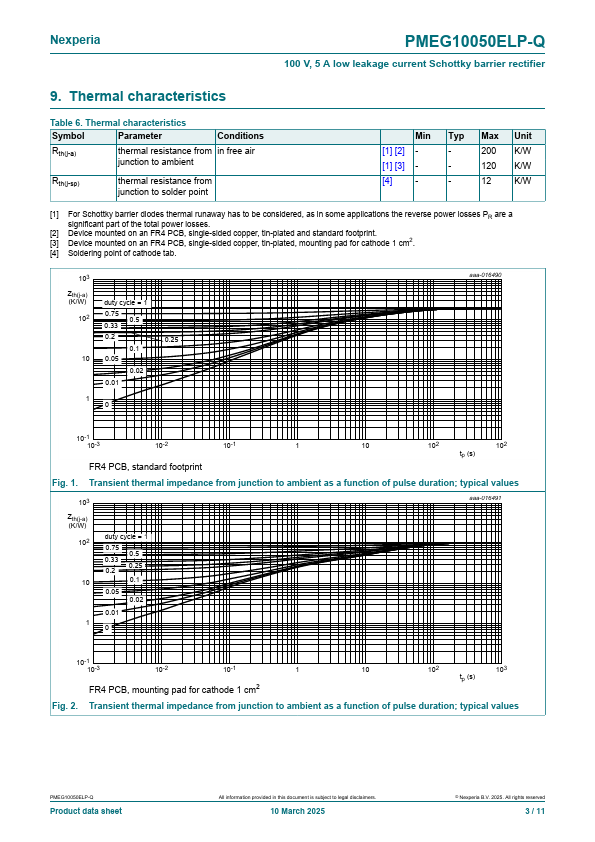

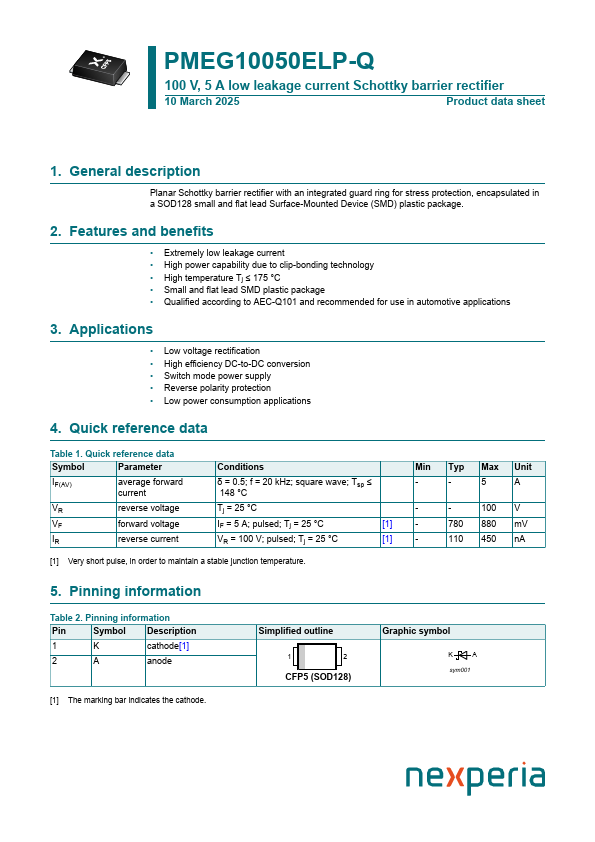

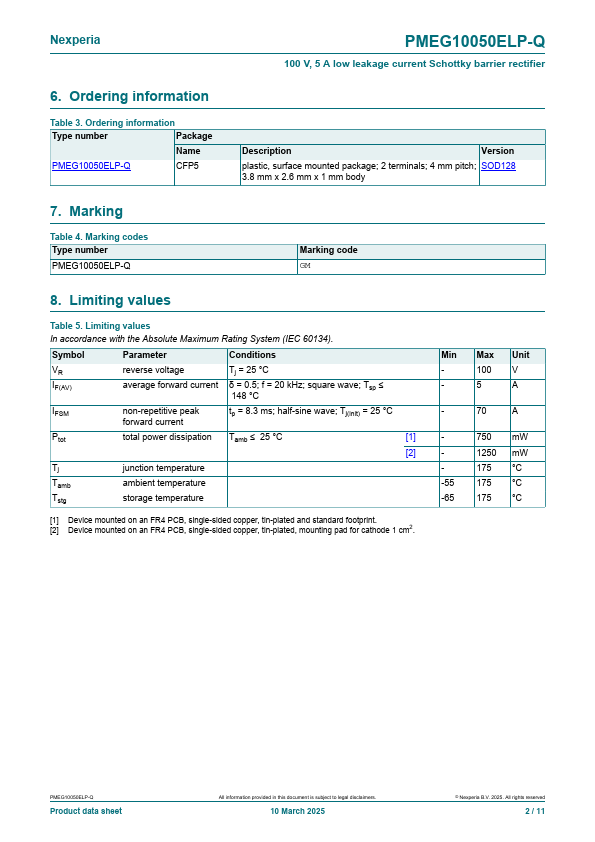

PMEG10050ELP-Q Datasheet Preview — Preview of PMEG10050ELP-Q PDF

Datasheet Details

Part number	PMEG10050ELP-Q
Manufacturer	nexperia
File Size	240.54 KB
Description	100V 5A low leakage current Schottky barrier rectifier
Datasheet	PMEG10050ELP-Q-nexperia.pdf

PMEG10050ELP-Q Product details

Description

Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package.

Features

Extremely low leakage current.
High power capability due to clip-bonding technology.
High temperature Tj ≤ 175 °C.
Small and flat lead SMD plastic package.
Qualified according to AEC-Q101 and recommended for use in automotive.
