PMBT2222AYS - double NPN switching transistor

Description

Double NPN switching transistor in a very small SOT363 (TSSOP6) Surface-Mounted Device (SMD) plastic package.

2.

Features

  • Double general-purpose switching transistor.
  • High current (max. 600 mA).
  • Voltage max. 40 V.
  • AEC-Q101 qualified 3.

📥 Download Datasheet

Datasheet Details

Part number PMBT2222AYS
Manufacturer Nexperia
File Size 688.80 KB
Description double NPN switching transistor
Datasheet download datasheet PMBT2222AYS Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PMBT2222A NPN switching transistors Philips
PMBT2222 NPN switching transistors Philips
PMBT2369 NPN switching transistor Philips
PMBT2907 PNP Transistor NXP
PMBT2907 PNP switching transistors Philips

Other Datasheets by Nexperia

Part Number Description
PMBT2222A NPN switching transistors
PMBT2222AM 600mA NPN switching transistor
PMBT2222AMB 600mA NPN switching transistor
PMBT2222AQA 600mA NPN switching transistor
PMBT2222 NPN switching transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

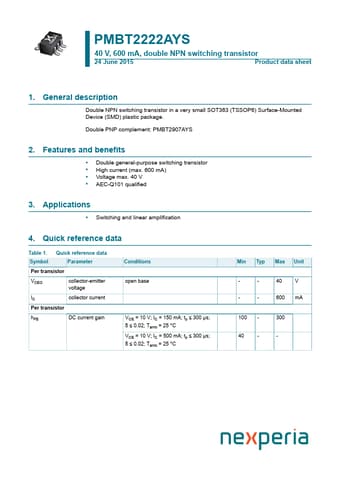

PMBT2222AYS 40 V, 600 mA, double NPN switching transistor 24 June 2015 Product data sheet 1. General description Double NPN switching transistor in a very small SOT363 (TSSOP6) Surface-Mounted Device (SMD) plastic package. Double PNP complement: PMBT2907AYS 2. Features and benefits • Double general-purpose switching transistor • High current (max. 600 mA) • Voltage max. 40 V • AEC-Q101 qualified 3. Applications • Switching and linear amplification 4. Quick reference data Table 1. Quick reference data Symbol Parameter Per transistor VCEO collector-emitter voltage IC collector current Per transistor hFE DC current gain Conditions open base VCE = 10 V; IC = 150 mA; tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C VCE = 10 V; IC = 500 mA; tp ≤ 300 µs; δ ≤ 0.
