PHDMI2F4 - ESD protection

Name: PHDMI2F4
SKU: PHDMI2F4-1554262

nexperia

📥 Download Datasheet

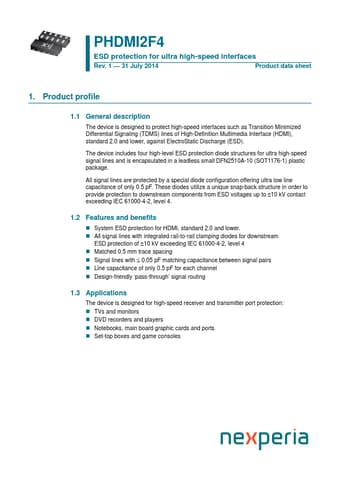

PHDMI2F4 Datasheet Preview — Preview of PHDMI2F4 PDF

Datasheet Details

Part number	PHDMI2F4
Manufacturer	nexperia
File Size	1.49 MB
Description	ESD protection
Datasheet	PHDMI2F4-nexperia.pdf

PHDMI2F4 Product details

Description

The device is designed to protect high-speed interfaces such as Transition Minimized Differential Signaling (TDMS) lines of High-Definition Multimedia Interface (HDMI), standard 2.0 and lower, against ElectroStatic Discharge (ESD).

Features

System ESD protection for HDMI, standard 2.0 and lower.
All signal lines with integrated rail-to-rail clamping diodes for downstream ESD protection of 10 kV exceeding IEC 61000-4-2, level 4.
Matched 0.5 mm trace spacing.
Signal lines with  0.05 pF matching capacitance between signal pairs.
Line capacitance of only 0.5 pF for each channel.
Design-friendly ‘pass-through’ signal routing 1.3.
