PESD5V5C1BBSF-Q - Extremely low capacitance bidirectional ESD protection diode

nexperia

Datasheet Details

Part number	PESD5V5C1BBSF-Q
Manufacturer	nexperia ↗
File Size	224.48 KB
Description	Extremely low capacitance bidirectional ESD protection diode
Datasheet	PESD5V5C1BBSF-Q-nexperia.pdf

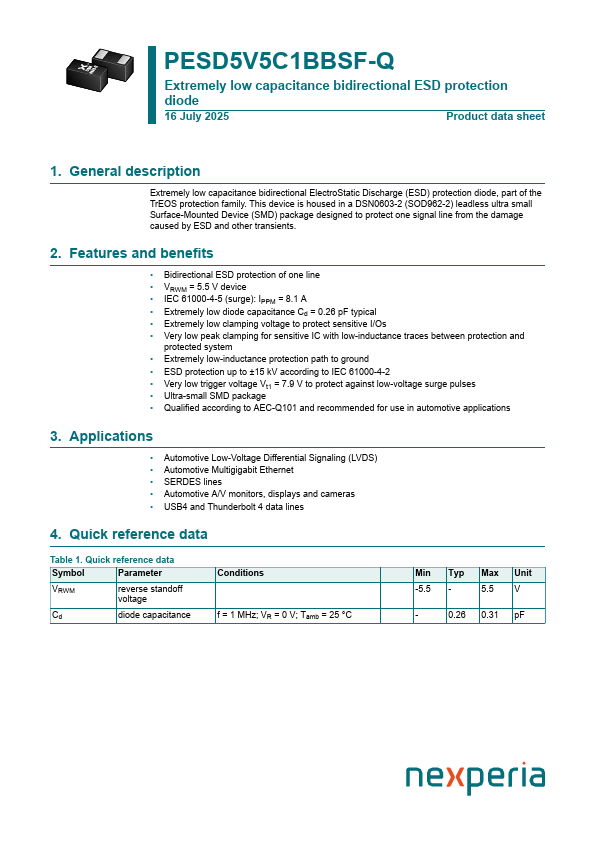

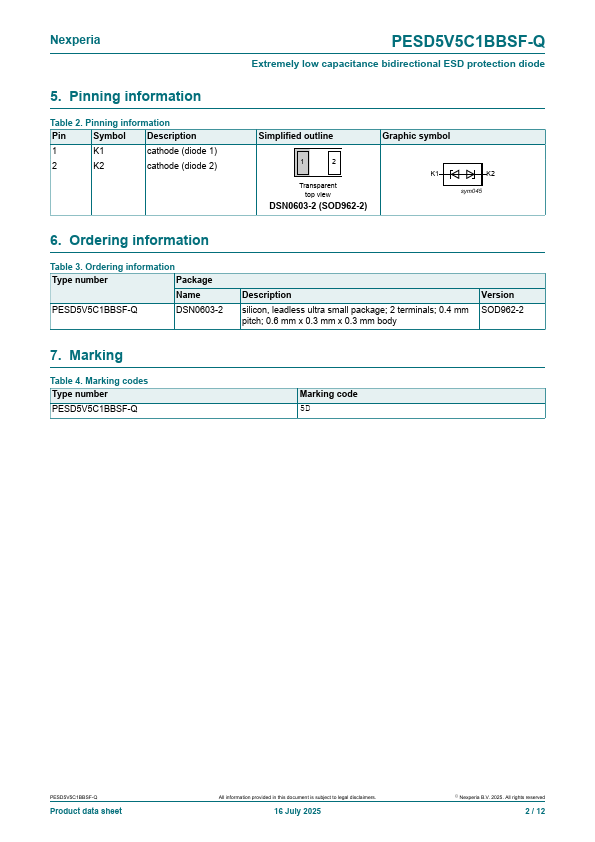

Extremely low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS protection family.

Bidirectional ESD protection of one line.
VRWM = 5.5 V device.

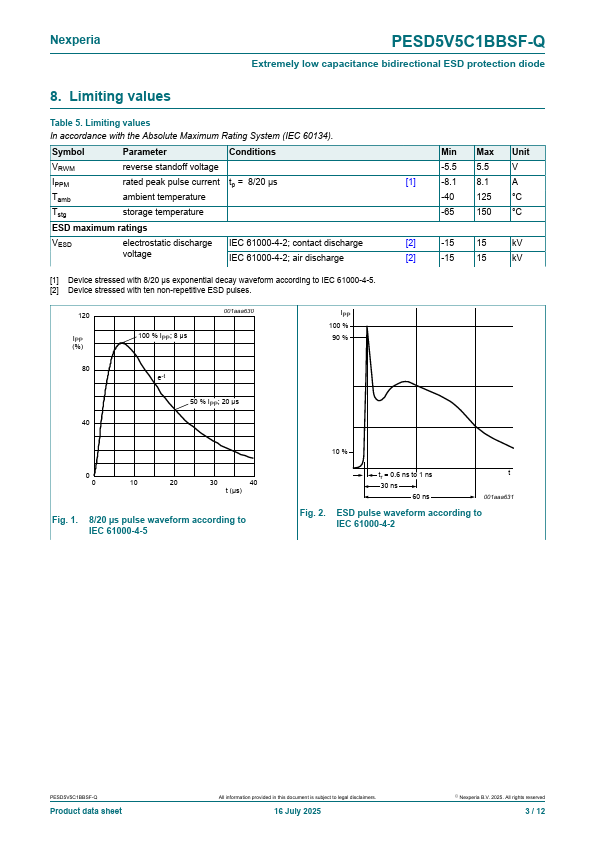

IEC 61000-4-5 (surge): IPPM = 8.1 A.
Extremely low diode capacitance Cd = 0.26 pF typical.
Extremely low clamping voltage to protect sensitive I/Os.
Very low peak clamping for sensitive IC with low-inductance traces between protection and protected system.
Extremely low-inductance protection path to ground.
ESD protection up to ±15 kV according to IEC 61000-4-2.
