PESD24VS2UT - Double ESD protection diode

nexperia

📥 Download Datasheet

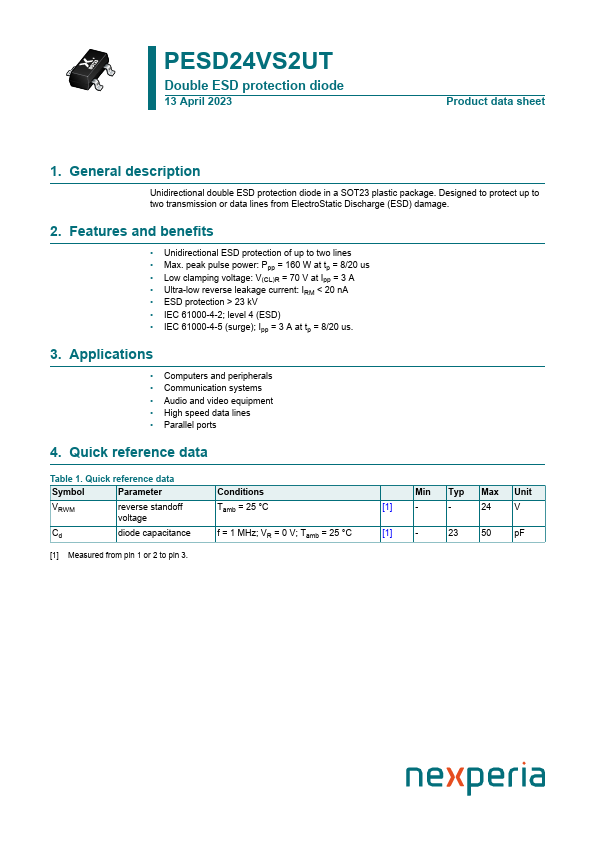

PESD24VS2UT Datasheet Preview — Preview of PESD24VS2UT PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PESD24VS2UT
Manufacturer	nexperia
File Size	239.25 KB
Description	Double ESD protection diode
Datasheet	PESD24VS2UT-nexperia.pdf

PESD24VS2UT Product details

Description

Unidirectional double ESD protection diode in a SOT23 plastic package.

Features

Unidirectional ESD protection of up to two lines.
Max. peak pulse power: Ppp = 160 W at tp = 8/20 us.
Low clamping voltage: V(CL)R = 70 V at Ipp = 3 A.
Ultra-low reverse leakage current: IRM < 20 nA.
ESD protection > 23 kV.
IEC 61000-4-2; level 4 (ESD).
IEC 61000-4-5 (surge); Ipp = 3 A at tp = 8/20 us. 3.
