PDTA124ET-Q 50V 100mA PNP resistor-equipped transistor

PDTA124ET-Q Description

PDTA124ET-Q 50 V, 100 mA PNP resistor-equipped transistor; R1 = 22 kΩ, R2 = 22 kΩ 8 September 2025 Product data sheet 1.General .
PNP Resistor-Equipped Transistor (RET) in a small SOT23 Surface-Mounted Device (SMD) plastic package.

PDTA124ET-Q Features

* 100 mA output current capability
* Built-in bias resistors
* Simplifies circuit design
* Reduces component count
* Reduces pick and place costs

PDTA124ET-Q Applications

* 3. Applications
* Digital application in automotive and industrial segments
* Cost-saving alternative for BC847 series in digital applications
* Controlling IC inputs
* Switching loads 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO

📥 Download Datasheet

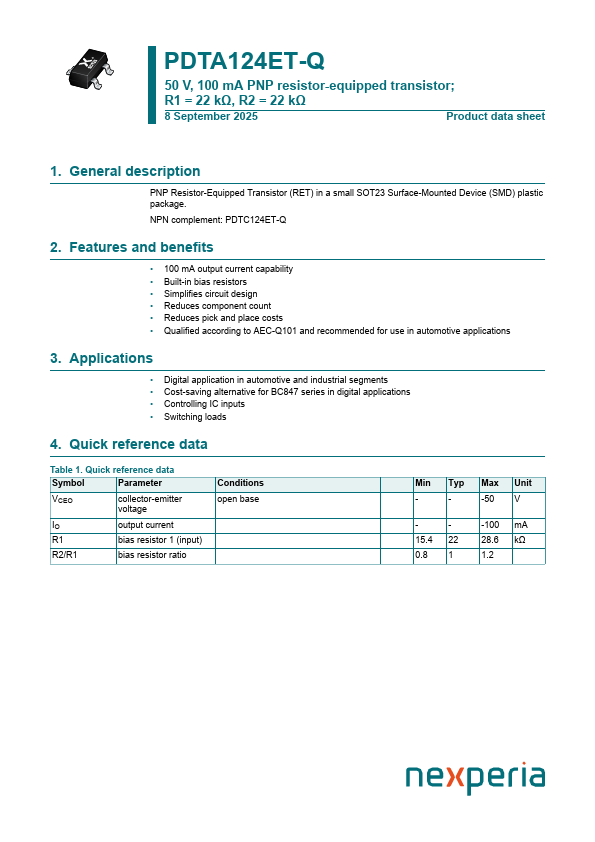

Preview of PDTA124ET-Q PDF

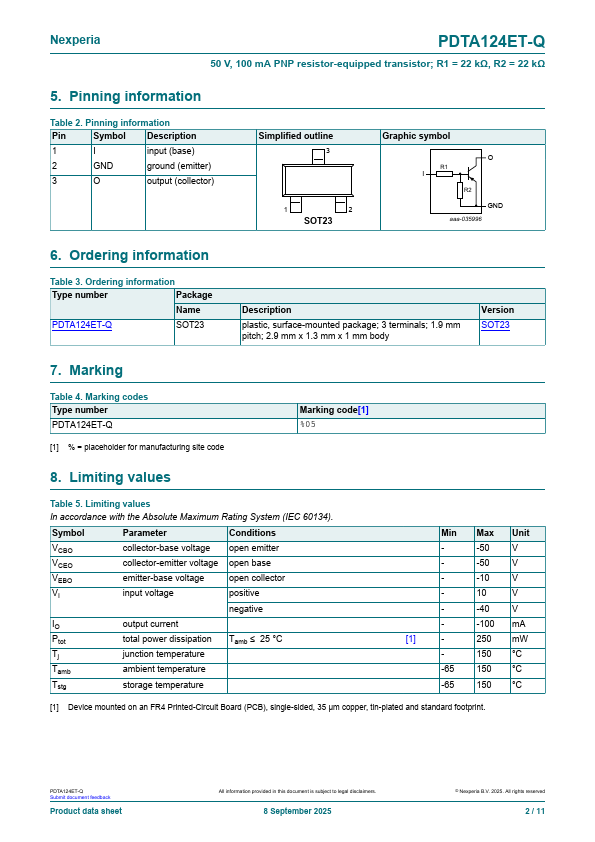

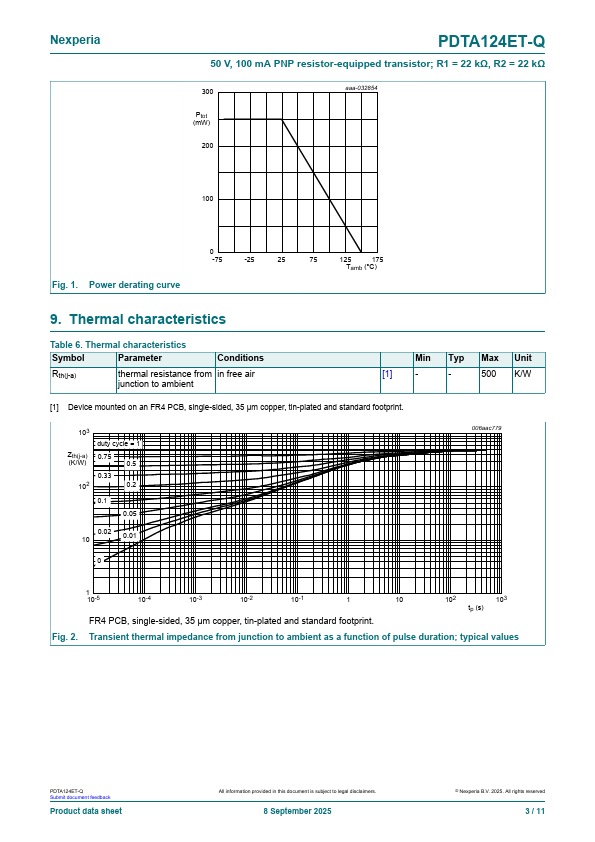

datasheet Preview Page 2 datasheet Preview Page 3
