PBSS9110Z - 100V 1A PNP low VCEsat transistor

nexperia

📥 Download Datasheet

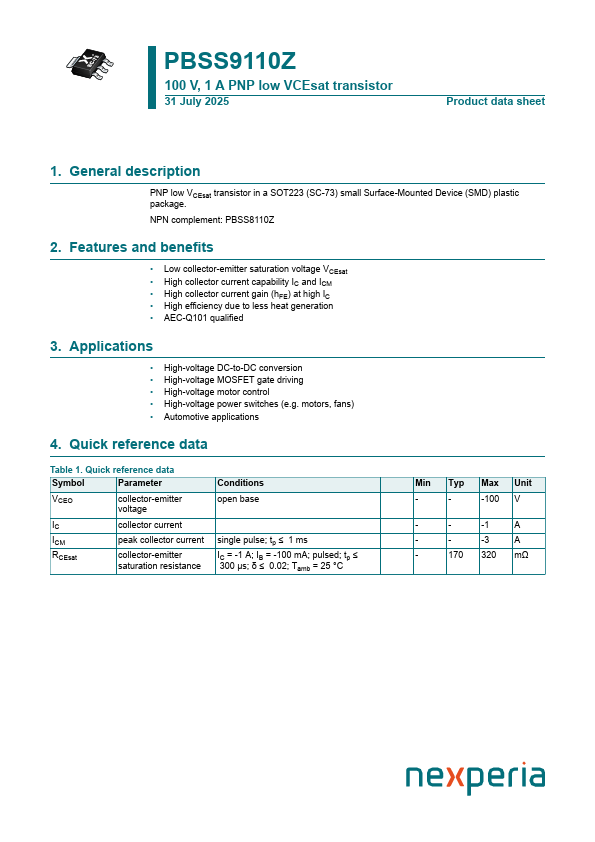

PBSS9110Z Datasheet Preview — Preview of PBSS9110Z PDF

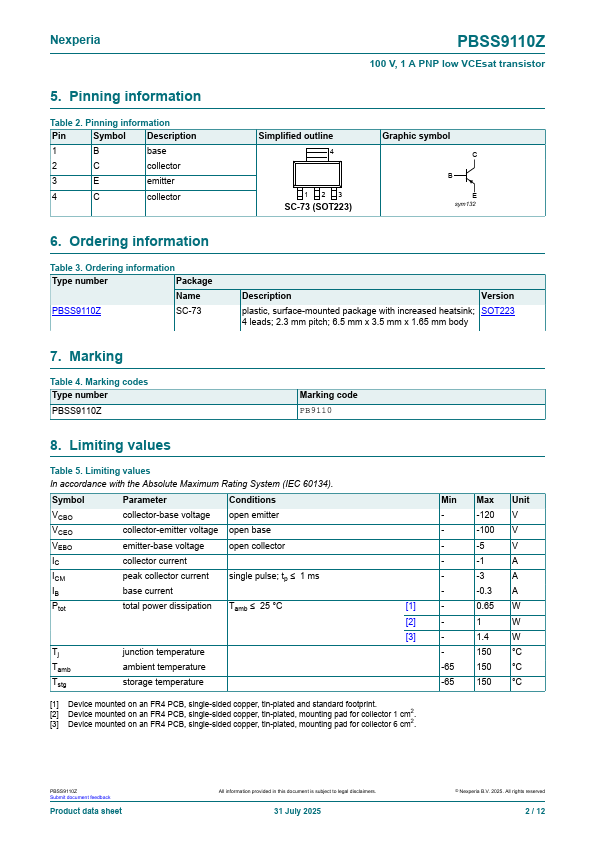

datasheet Preview Page 2

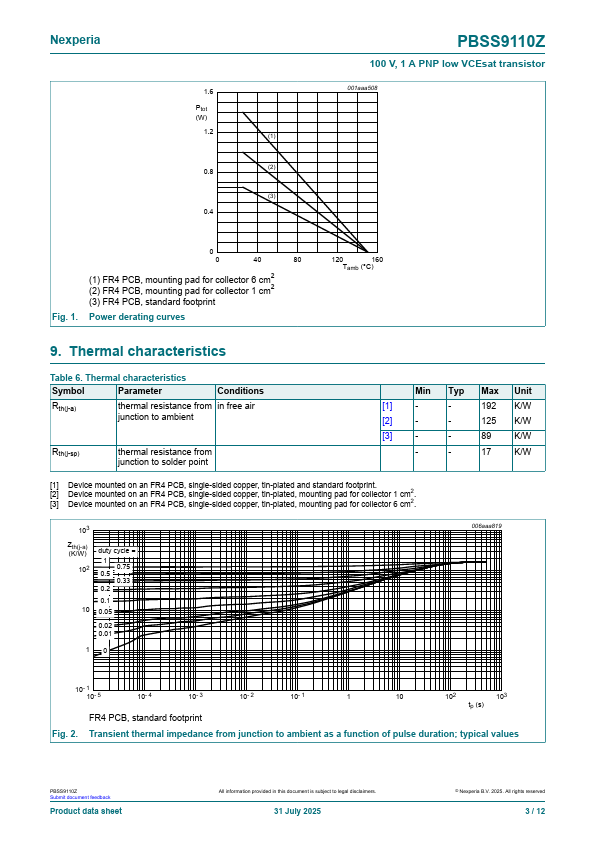

datasheet Preview Page 3

Datasheet Details

Part number	PBSS9110Z
Manufacturer	nexperia
File Size	296.68 KB
Description	100V 1A PNP low VCEsat transistor
Datasheet	PBSS9110Z-nexperia.pdf

PBSS9110Z Product details

Description

PNP low VCEsat transistor in a SOT223 (SC-73) small Surface-Mounted Device (SMD) plastic package.

Features

Low collector-emitter saturation voltage VCEsat.
High collector current capability IC and ICM.
High collector current gain (hFE) at high IC.
High efficiency due to less heat generation.
AEC-Q101 qualified 3.
